B&M Hi-Tek Deep Transmission Pan, Aluminum 70391

B&M Hi-Tek Deep Transmission Pan, Aluminum 70391
B&M Hi-Tek Deep Transmission Pan, Aluminum 70391B&M Hi-Tek Deep Transmission Pan, Aluminum 70391B&M Hi-Tek Deep Transmission Pan, Aluminum 70391B&M Hi-Tek Deep Transmission Pan, Aluminum 70391B&M Hi-Tek Deep Transmission Pan, Aluminum 70391
$1,426.99 ea

NEWARRIVING SOONEstimated Ship Date 09/03/2025 (If Ordered Today)7 Available from HOLLEY PERFORMANCE PRODUCTS as of 08/16/2025
Model: 3998301
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

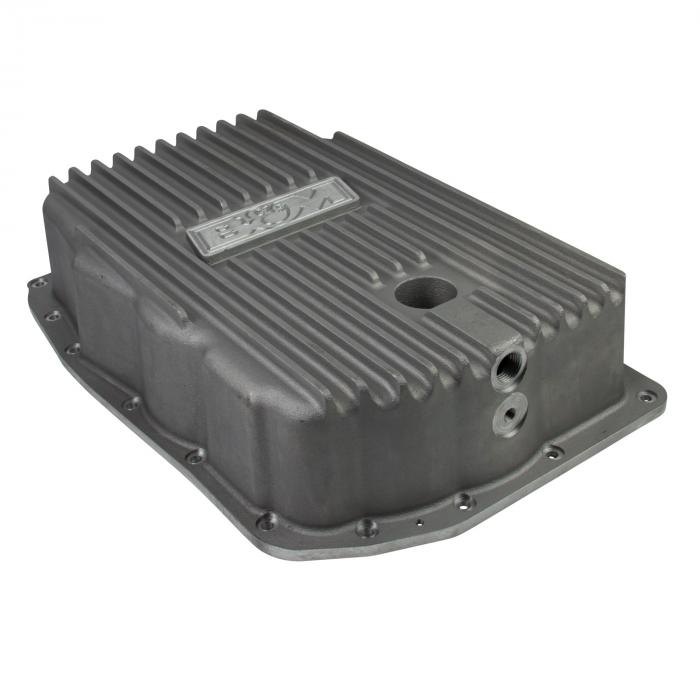

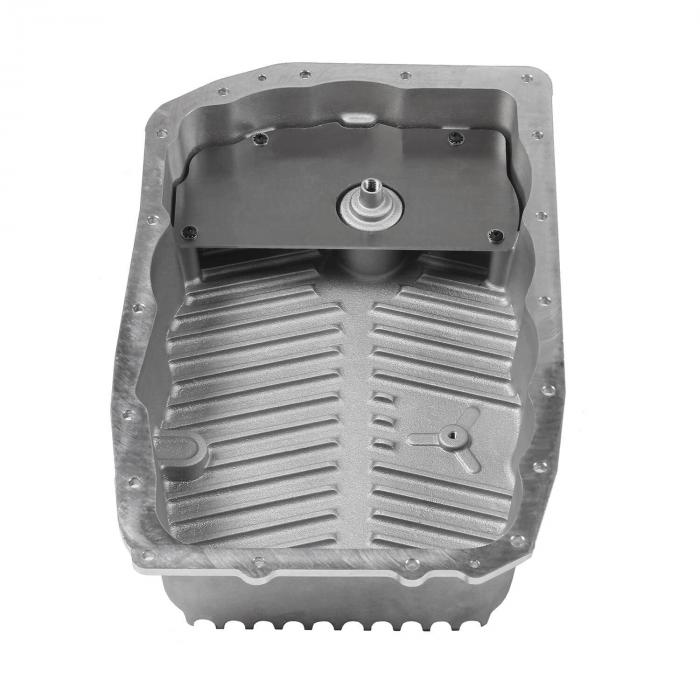

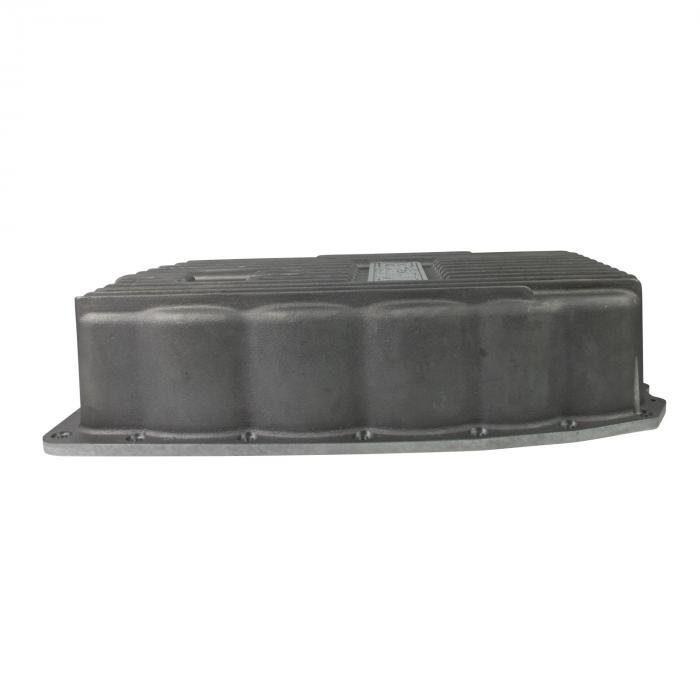

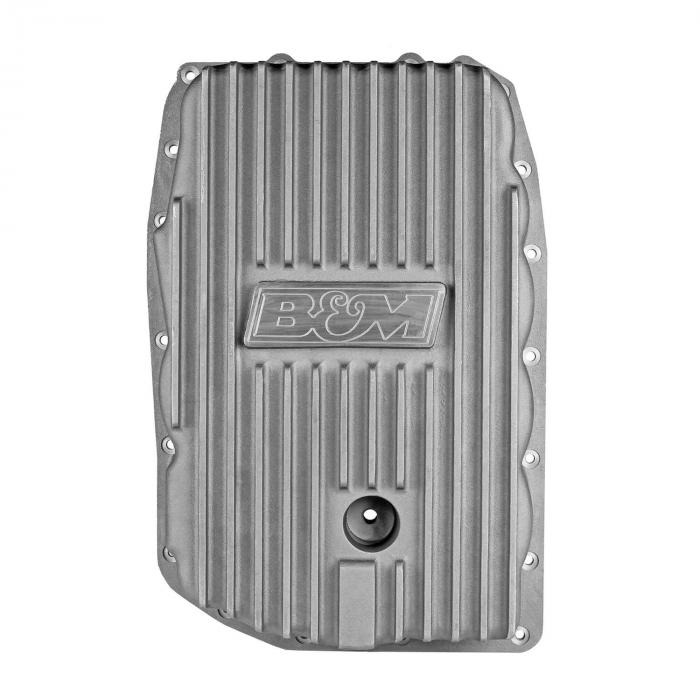

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 1.8-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does not fit GM Truck/SUV 6L80E transmissions.
Features:
  • Drain Port with Magnetic Drain Plug for Easy Servicing
  • Thick Fins for Strength and Improved Cooling
  • Increases Fluid Capacity by 1.8-quarts
  • Features Temperature Sensor Port
  • A356-T6 Aluminum Construction
  • Over 65 Years of B&M Quality
  • Lifetime Limited Warranty

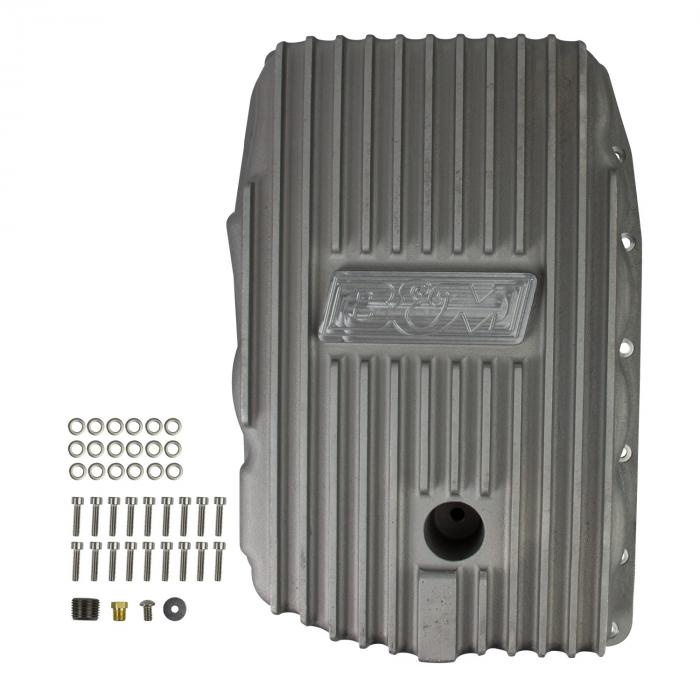

  • Includes Hardware
  • Easy Installation
Fits 2010-2015 Chevrolet Camaro SS 6.2L models with 6L80E automatic transmission. Does Not fit GM Truck/SUV 6L80E transmissions. For GM Truck/SUV see Part# 70392.
Installation Notes:
Fits 2010-2015 Chevrolet Camaro SS 6.2L models with 6L80E automatic transmission. Does Not fit GM Truck/SUV 6L80E transmissions. For GM Truck/SUV see Part# 70392.
About B&M Racing

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.

Downloads:

Download Name File Size
bm_warranty.pdf87.47KB
70391_instructions.pdf2.44MB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine
Chevrolet Camaro 2010 6.2L / 376 / V8
Chevrolet Camaro 2011 6.2L / 376 / V8
Chevrolet Camaro 2012 6.2L / 376 / V8
Chevrolet Camaro 2013 6.2L / 376 / V8
Chevrolet Camaro 2014 6.2L / 376 / V8
Chevrolet Camaro 2015 6.2L / 376 / V8
Pontiac G8 2008
Pontiac G8 2009

Specifications:

Additional Fluid Capacity (qts) 1.8
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Color Gray
Cooling Efficiency 30% over stock
Drain Plug Included Yes
Emission Code 5
Filter Included No
Gasket Included Yes
Material K-Alloy SP (Proprietary AluminumAlloy)
Mounting Hardware Yes
Pan Hang Over Stock 3/4 in
Part Type Transmission Oil Pan
Product Type Automatic Transmission Pans
Proposition 65 www.P65Warnings.ca.gov
Style Deep
Temperature Sensor Bung Yes
Transmission 6L80E
Transmission Type Automatic
Warranty Limited Lifetime (Lifetime)
