Champion Cooling 1970-1981 Pontiac Firebird 2 Row with 1" Tubes All Aluminum Radiator Made With Aircraft Grade Aluminum AE573

Champion Cooling 1970-1981 Pontiac Firebird 2 Row with 1" Tubes All Aluminum Radiator Made With Aircraft Grade Aluminum AE573
Champion Cooling 1970-1981 Pontiac Firebird 2 Row with 1" Tubes All Aluminum Radiator Made With Aircraft Grade Aluminum AE573Champion Cooling 1970-1981 Pontiac Firebird 2 Row with 1" Tubes All Aluminum Radiator Made With Aircraft Grade Aluminum AE573Champion Cooling 1970-1981 Pontiac Firebird 2 Row with 1" Tubes All Aluminum Radiator Made With Aircraft Grade Aluminum AE573
$517.99 ea
NEWOut of stock with CHAMPION COOLING SYSTEMS, INC as of 03/02/2024
Model: 3919053
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SHIPPING
INCLUDED

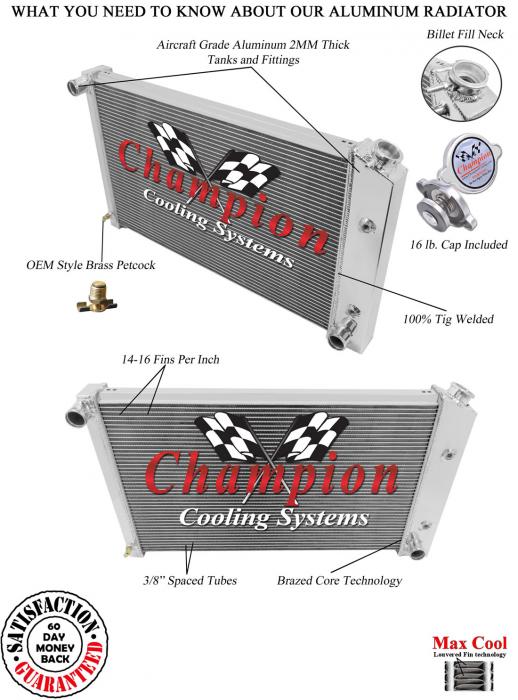

Our American Eagle series all aluminum radiators feature cores constructed using 2 rows of 1” tubes and are designed to keep your high performance engine cool. They are designed with 2 rows of 1” tubes in a 2 1/4” thick brazed aluminum core tig-welded to aluminum tanks, with approximately 14-16 louvered fins per inch, a brass petcock, and all are designed with aircraft grade aluminum. The aluminum allows for the improved design of larger tubes to outperform a copper-brass radiator of similar dimensions. We would recommend the use of these radiators for vehicle applications that have an engine producing 800 horsepower or less.

Champion Cooling brought the American Eagle series of radiators to market with the goal of not only making a product our customers would be proud to show off, but also designed to the highest standard while still making it very affordable. You could easily spend between $450 and $950 on a comparable two-row radiator from one of our competitors.

About Champion Cooling Systems

When we sat down and thought about what our customer was actually purchasing, we discovered it wasn’t simply parts for a classic car. We discovered they were purchasing nostalgia because their classic car brought back great memories from their past. Knowing this, we made it our mission to make sure our products were manufactured with the highest level of quality so our customers would be proud to install them in their vehicles and show them off to their friends. We also set out to make sure we could provide our products at a very affordable price allowing more people to enjoy the nostalgia of restoring a classic car. In addition to making sure our products are of the highest standard we give our best effort to serve our customers and treat them exactly how we would want to be treated.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Pontiac Firebird Base 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1971 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1972 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1973 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1974 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1975 6.6L / 400 / V8
Pontiac Firebird Base 1976 6.6L / 400 / V8
Pontiac Firebird Base 1977 6.6L / 403 / V8
4.9L / 301 / V8
5.7L / 350 / V8
3.8L / 231 / V6
5.0L / 305 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1978 3.8L / 231 / V6
5.0L / 305 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1979 4.9L / 301 / V8
3.8L / 231 / V6
5.0L / 305 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1980 4.3L / 265 / V8
4.9L / 301 / V8
3.8L / 231 / V6
5.0L / 305 / V8
Pontiac Firebird Base 1981 4.9L / 301 / V8
4.3L / 265 / V8
3.8L / 231 / V6
Pontiac Firebird Esprit 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1971 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1972 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1973 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1974 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1975
Pontiac Firebird Esprit 1976 6.6L / 400 / V8
Pontiac Firebird Esprit 1977 4.9L / 301 / V8
5.7L / 350 / V8
3.8L / 231 / V6
5.0L / 305 / V8
Pontiac Firebird Esprit 1978 3.8L / 231 / V6
5.0L / 305 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1979 4.9L / 301 / V8
3.8L / 231 / V6
5.0L / 305 / V8
5.7L / 350 / V8
Pontiac Firebird Esprit 1980 4.3L / 265 / V8
4.9L / 301 / V8
3.8L / 231 / V6
5.0L / 305 / V8
Pontiac Firebird Esprit 1981 4.9L / 301 / V8
4.3L / 265 / V8
3.8L / 231 / V6
Pontiac Firebird Formula 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1971 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1972 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1973 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1974 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1975 6.6L / 400 / V8
Pontiac Firebird Formula 1976 6.6L / 400 / V8
Pontiac Firebird Formula 1977 6.6L / 403 / V8
4.9L / 301 / V8
5.7L / 350 / V8
5.0L / 305 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1978 6.6L / 403 / V8
5.0L / 305 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1979 6.6L / 403 / V8
4.9L / 301 / V8
5.0L / 305 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1980 4.9L / 301 / V8
5.0L / 305 / V8
Pontiac Firebird Formula 1981 4.9L / 301 / V8
4.3L / 265 / V8
3.8L / 231 / V6
5.0L / 305 / V8
Pontiac Firebird Trans Am 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1971 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1972 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1973 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1974 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1975 6.6L / 400 / V8
Pontiac Firebird Trans Am 1976 6.6L / 400 / V8
Pontiac Firebird Trans Am 1977 6.6L / 403 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1978 6.6L / 403 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1979 6.6L / 403 / V8
4.9L / 301 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1980 4.9L / 301 / V8
5.0L / 305 / V8
Pontiac Firebird Trans Am 1981 4.9L / 301 / V8
5.0L / 305 / V8

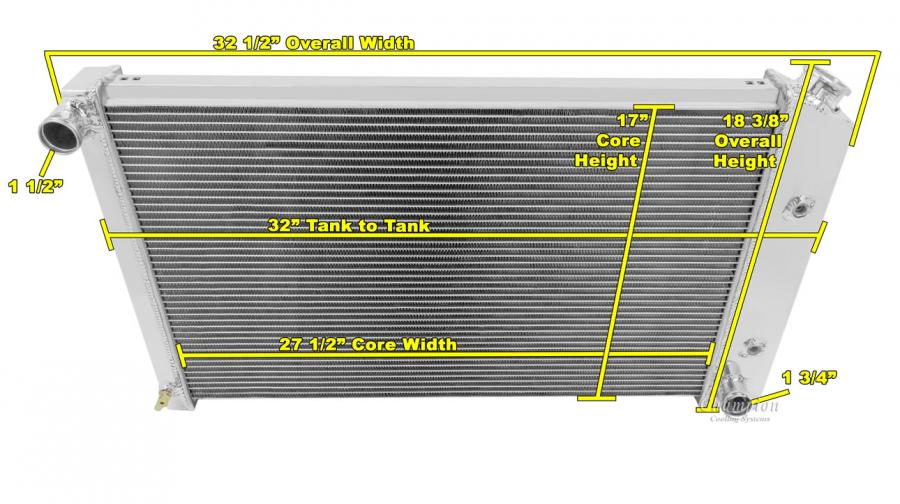

Specifications:

Core Height 17 IN
Core Material Aluminum
Core Row Quantity 2 Row with 1" Tubes
Core Width 27.5 IN
Down Flow Or Cross Flow Type Cross Flow
Filler Neck Attached Yes
Inlet Diameter 1.5 IN
Inlet Location Driver
Internal Transmission Oil Cooler Yes
Mounting Type Saddle
Outlet Diameter 1.5 IN
Outlet Location Passenger
Overall Height 18.375 IN
Overall Width 32.5 IN
Part Type Radiator
Tank Material Aluminum
Transmission Oil Cooler Fitting Type 1/2-20 Straight Thread, Inverted Flare IN
Warranty Limited Lifetime (Lifetime)
