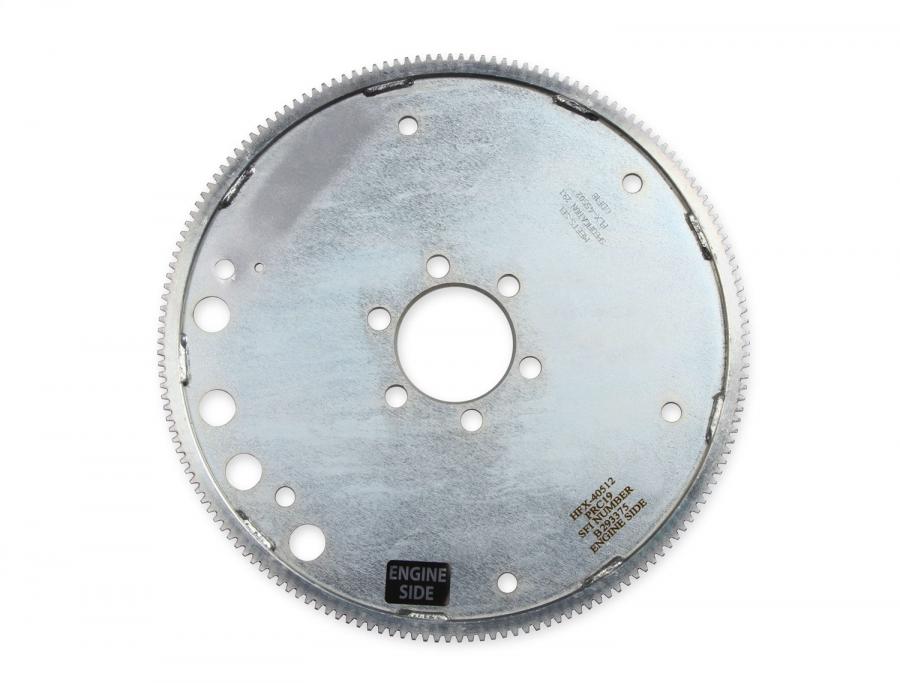

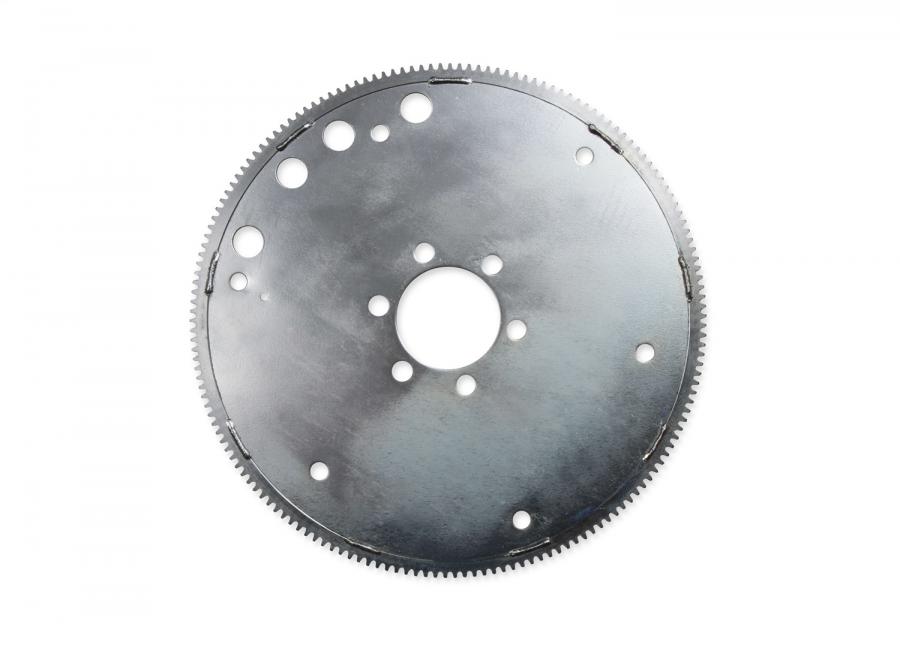

Hays Steel SFI Certified Flexplate, Pontiac 40-512

Hays Steel SFI Certified Flexplate, Pontiac 40-512
Hays Steel SFI Certified Flexplate, Pontiac 40-512Hays Steel SFI Certified Flexplate, Pontiac 40-512Hays Steel SFI Certified Flexplate, Pontiac 40-512
$123.99 ea
NEWARRIVING SOONEstimated Ship Date 05/17/2024 (If Ordered Today)36 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/28/2024
Model: 4006843
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
Hays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Features:
  • SFI-approved – legal for use in racing classes that require SFI certification

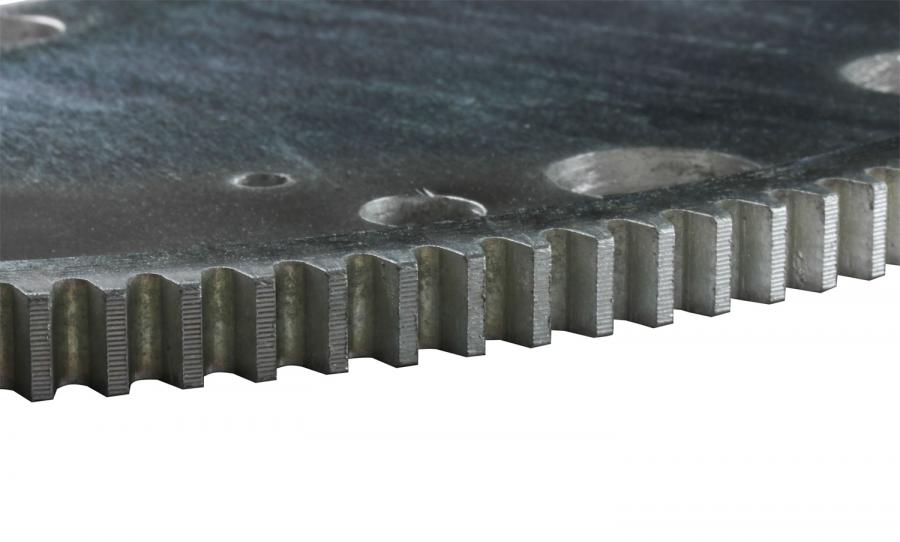

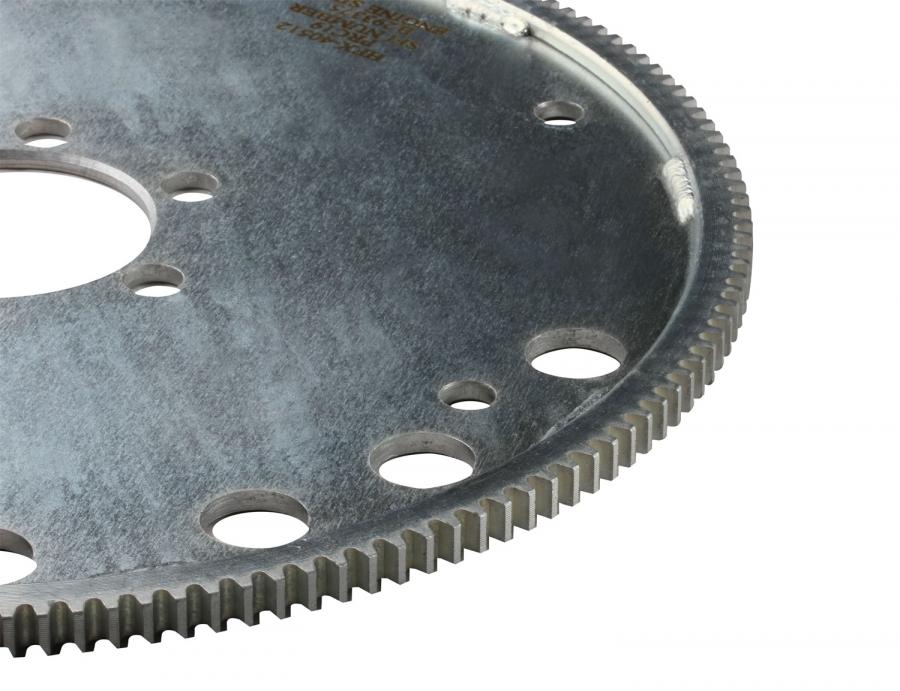

  • Flexplate features a precision double welded ring gear
  • Has 4mm thick center plate to resist cracking near crankshaft flange
  • Zinc-dichromate plated to resist corrosion
  • CAD designed to provide optimum performance and reliability
  • Available in Internal or External balanced versions
  • Applications offered for a wide variety of engine and transmission bolt patterns

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Pontiac Firebird 350 HO 1969 5.7L / 350 / V8
Pontiac Firebird 350 1968 5.7L / 350 / V8
Pontiac Firebird 350 1969 5.7L / 350 / V8
Pontiac Firebird 400 1967 6.6L / 400 / V8
Pontiac Firebird 400 1968 6.6L / 400 / V8
Pontiac Firebird 400 1969 6.6L / 400 / V8
Pontiac Firebird Base 1967 5.3L / 326 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1968 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1969 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1971 6.6L / 400 / V8
7.5L / 455 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1972 6.6L / 400 / V8
7.5L / 455 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1973 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1974 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1975 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Base 1976 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1977 6.6L / 403 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1978 5.7L / 350 / V8
Pontiac Firebird Base 1979 5.7L / 350 / V8
Pontiac Firebird Esprit 1970 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1971 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1972 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1973 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1974 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1975 5.7L / 350 / V8
Pontiac Firebird Esprit 1976 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1977 5.7L / 350 / V8
Pontiac Firebird Esprit 1978 5.7L / 350 / V8
Pontiac Firebird Esprit 1979 5.7L / 350 / V8
Pontiac Firebird Formula 1970 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1971 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1972 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1973 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1974 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1975 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1976 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1977 6.6L / 400 / V8
5.7L / 350 / V8
6.6L / 403 / V8
Pontiac Firebird Formula 1978 6.6L / 400 / V8
5.7L / 350 / V8
6.6L / 403 / V8
Pontiac Firebird Formula 1979 6.6L / 400 / V8
5.7L / 350 / V8
6.6L / 403 / V8
Pontiac Firebird HO 1967 5.3L / 326 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1969 6.6L / 400 / V8
Pontiac Firebird Trans Am 1970 5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1971 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1972 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1973 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1974 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1975 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1976 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1977 6.6L / 403 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1978 6.6L / 403 / V8
6.6L / 400 / V8
Pontiac Firebird Trans Am 1979 6.6L / 403 / V8
6.6L / 400 / V8

Specifications:

# of Teeth 166
Application Pontiac
Bolt Pattern GM 10-3/4", GM 11-1/2"
Centerplate Thickness 4 mm
Emission Code 5
Engine Balance External
Finish Silver
Material Steel
Part Type Automatic Transmission Flexplate
Product Type Flexplates
Proposition 65 www.P65Warnings.ca.gov
SFI Approved Yes
SFI Certification 29.1
Warranty 90 Day
