Holley EFI Pro Dash 553-111

Holley EFI Pro Dash 553-111
Holley EFI Pro Dash 553-111Holley EFI Pro Dash 553-111Holley EFI Pro Dash 553-111Holley EFI Pro Dash 553-111Holley EFI Pro Dash 553-111Holley EFI Pro Dash 553-111
$2,759.99 ea
NEWARRIVING SOONEstimated Ship Date 10/08/2021 (If Ordered Today)45 available from HOLLEY PERFORMANCE PRODUCTS as of 09/23/2021
Model: 4007610
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

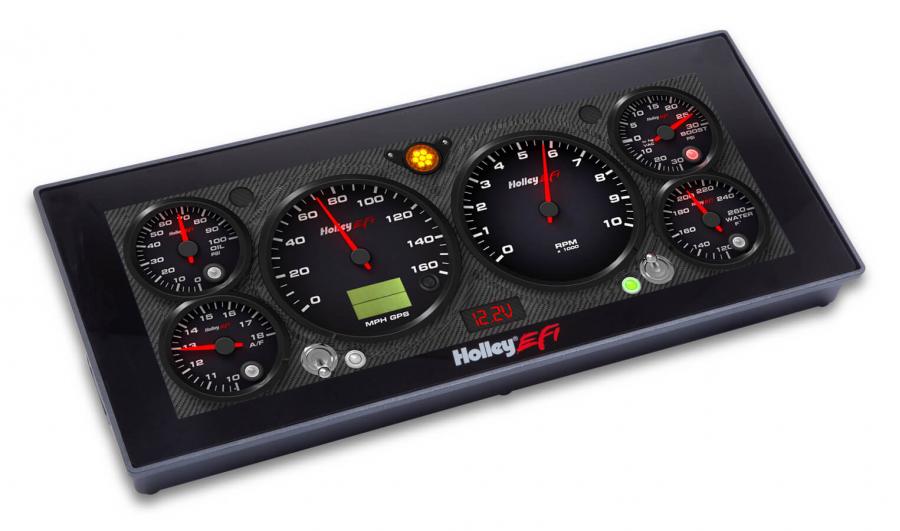

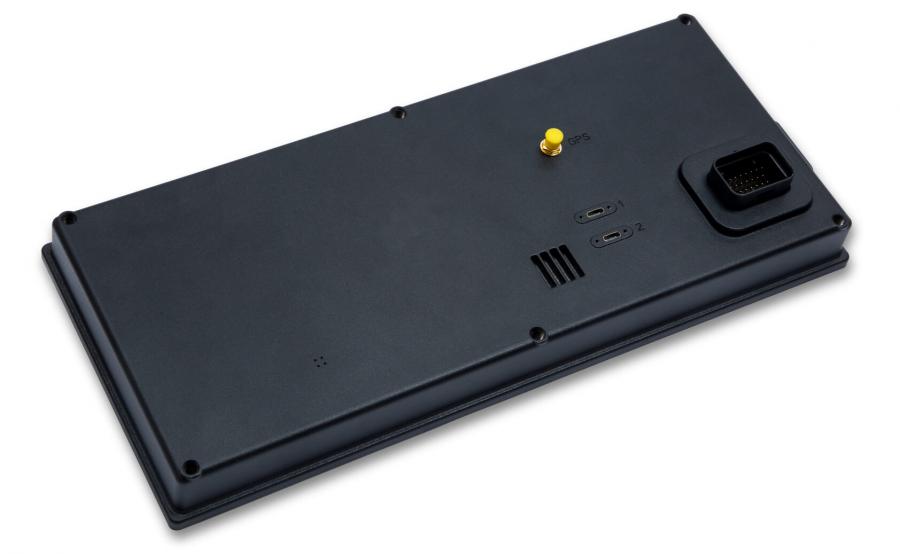

Trust. Whether it's your engine builder, team members or EFI System, trust is earned, not given. When your expensive engine, sponsorship and reputation are on the line, trust your engine monitoring to the Holley EFI 12.3" Pro Dash! The Holley EFI Pro Dash measures 13.44" wide, 5.81" tall and 1.25" deep. The Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 12.3" 1280x480 resolution low glare, high brightness, high contrast, full color capacitive touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather resistant aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 12.3" Pro Dash includes everything needed for installation! The Holley EFI 12.3" Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump. *Includes everything needed for installation! USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts. Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections. Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs. User defined alarms for any input. Upgradable with future software enhancements. Viewing area is 12.3" on the diagonal
Features:
  • Real-Time ECU Tuning Allows Quick Tune Changes Without Laptop
  • Capable Of Monitoring Up To 28 Real-Time Values
  • 16 Default Background Skins Pre-Loaded w/Unlimited Options
  • Quickly Swipe Between Multiple Active Screens
  • Virtual Switch Panel Eliminates Need For External Toggle Switches
  • Manual Or Auto-Brightness Features For Easy Viewing Day or Night
  • Built In GPS w/Odometer Function
  • On-Screen Datalog Playback Feature Allows Review Vital Run Info
  • Expandable Storage Via USB
  • No Stylus Required-Captive Touch Just Like Your Smart Phone
  • User Definable Channel Alarms/Warnings
  • 6x 1/4-28 Mounting Holes for Surface or Flush Mounting
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
Plug and play with: Dominator - HP - Terminator X - and Sniper EFI! This device will only display and/or communicate with Holley EFI HP or Dominator ECUs with V4 Build 110 or later firmware

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Videos:

Specifications:

Depth 1.250 in.
Emission Code 5
Height 5.81"
Item Height 5.810 in.
Part Type Dashboard Panel
Position N/A
Screen Size 12.3 Viewing Area
Screen Type Capacitive Touch Screen
Width 13.440 in.
