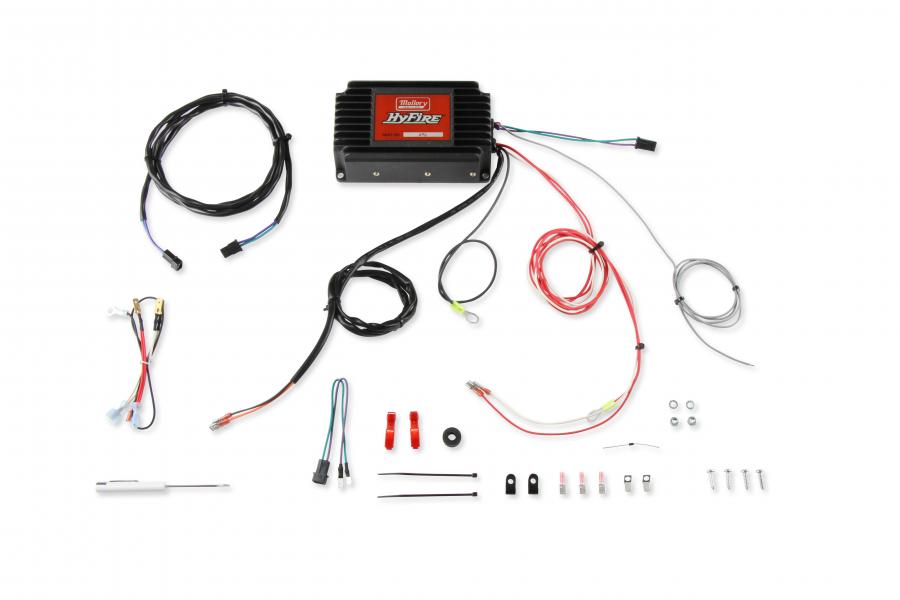

Mallory HyFire Ignition Box 690

Mallory HyFire Ignition Box 690
Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690Mallory HyFire Ignition Box 690
$346.99 ea
NEWARRIVING SOONEstimated Ship Date 05/17/2024 (If Ordered Today)93 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/27/2024
Model: 4010701
STANDARD
DELIVERY
A modern twist on a familiar name in ignition performance is back! The Mallory HyFire needs no introduction. Packed inside the retro case are modern electronics ready to deliver a powerful ignition punch. The HyFire is a capacitive discharge ignition that supplies multiple sparks at low RPM's for a clean idle and quick throttle response. Since the HyFire provides powerful spark through redline, a built in adjustable rev limiter will help tame your beast in case of a missed shift or driveline failure. The rev limiter is adjustable in 100 RPM increments with easily adjustable rotary dials.
Features:
  • Modern capacitive discharge ignition technology
  • Retro design for classic good looks
  • Connects easily to points, amplifiers and magnetic pickup distributors
  • Adjustable rev limiter for overrev protection
  • Multiple sparks at low RPM for improved starting, clean idle and snappy throttle response

Downloads:

Download Name File Size
690.pdf573.95KB

Videos:

Specifications:

Color Black
Current Draw .7 Amp per 1,000 RPM
Emission Code 3
Part Type Engine Ignition RPM Governor
Primary Voltage 435 Volts
Product Type HyFire Ignition Box
Proposition 65 www.P65Warnings.ca.gov
RPM Range 15,000 RPM with 14.4 Volts
Secondary Voltage 43,000 Volts
Spark Energy 95 mJ per spark
Spark Series Duration 20° Crankshaft Rotation
Voltage Required 10-18 Volts, Negative Ground
Weight and Size 2.82lbs., 6.875"L x 4.0"W x 3.375"H
