The NOS "Plate Only" kit allows our customers to build a custom nitrous system for their 2010-2015 Chevrolet Camaro, or any application using a GM LS style, 90mm, 4-bolt throttle body. This ultra-slim design is only 1/4" thick at the throttle body mounting flange. This allows maximum room forward of the throttle body to clear accessory drives, tensioner brackets or other obstacles that may interfere with a more forward mounted throttle body.

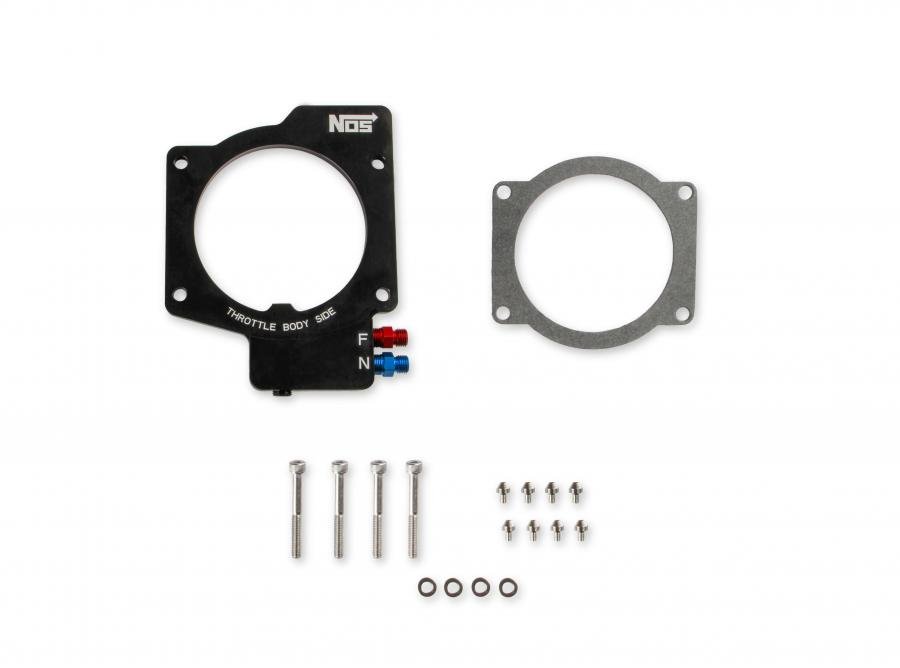

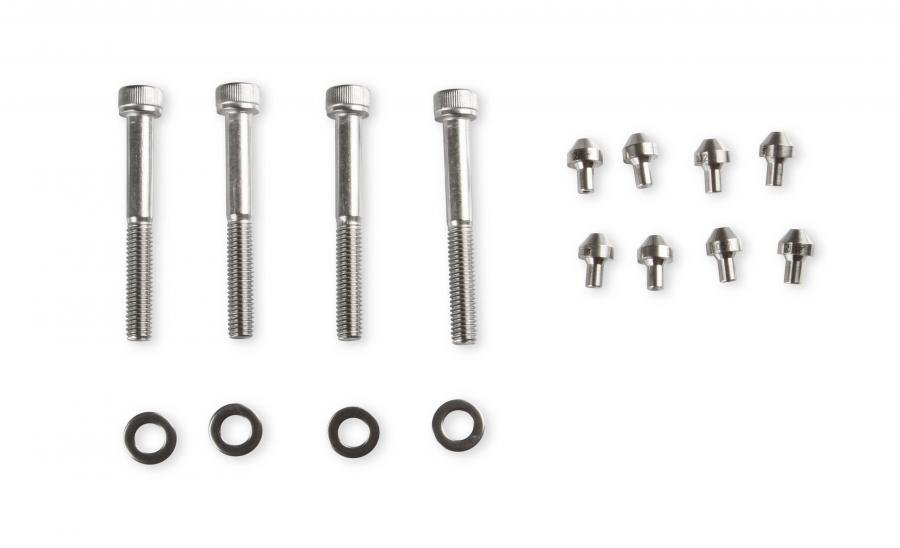

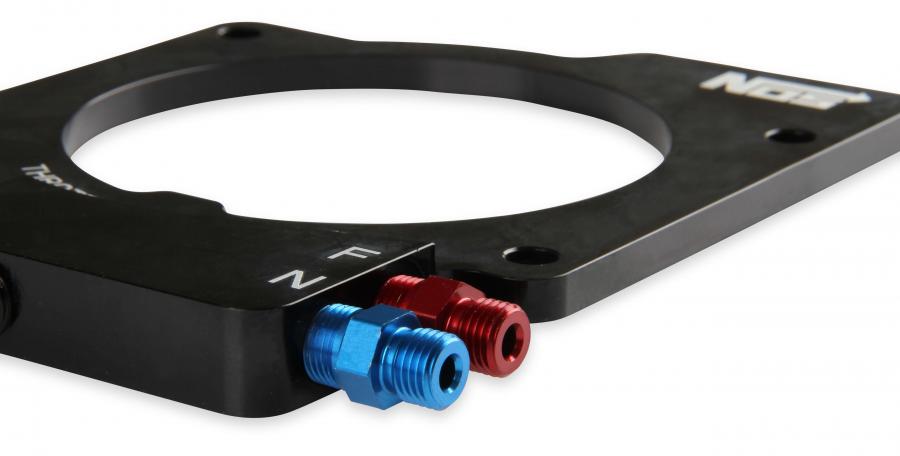

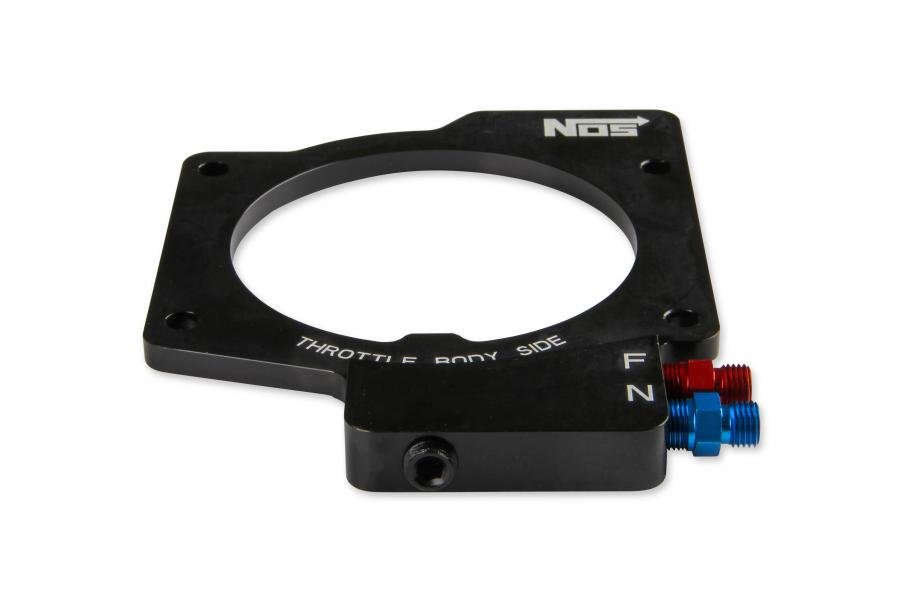

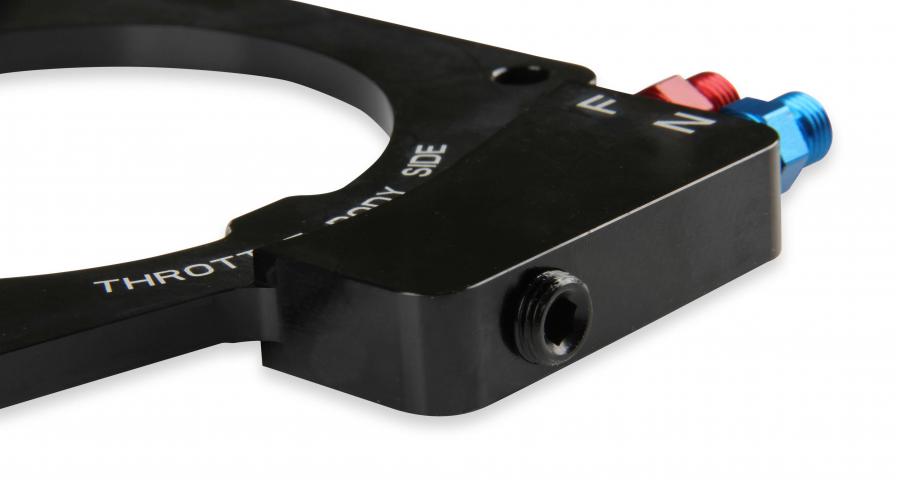

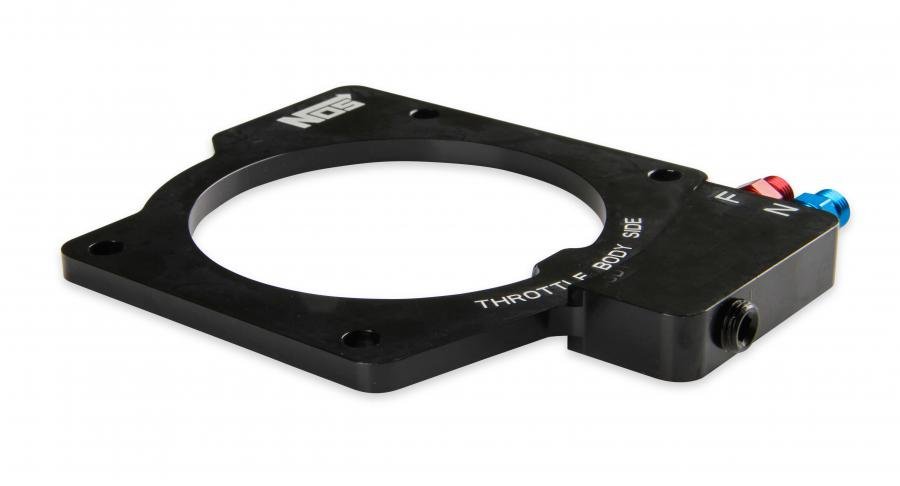

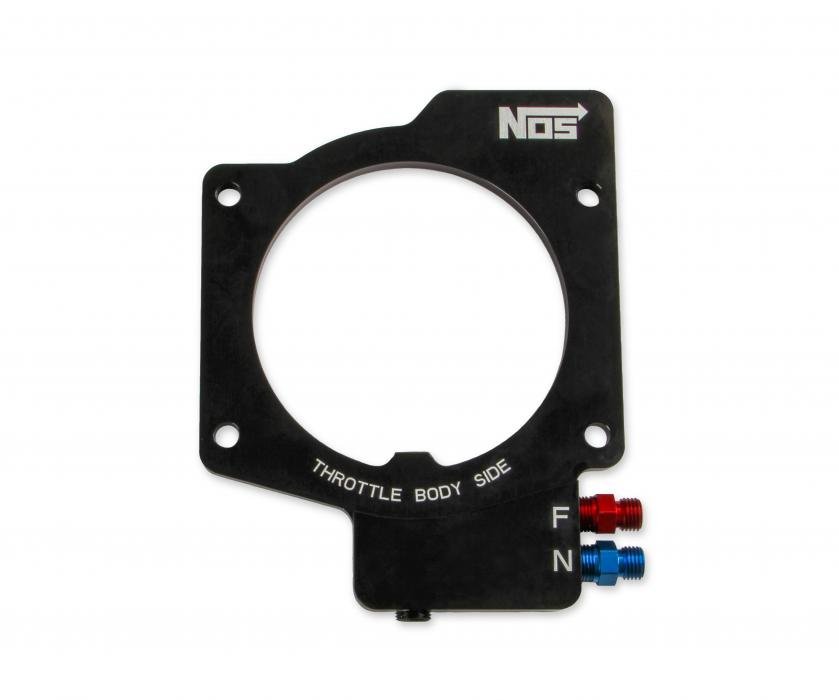

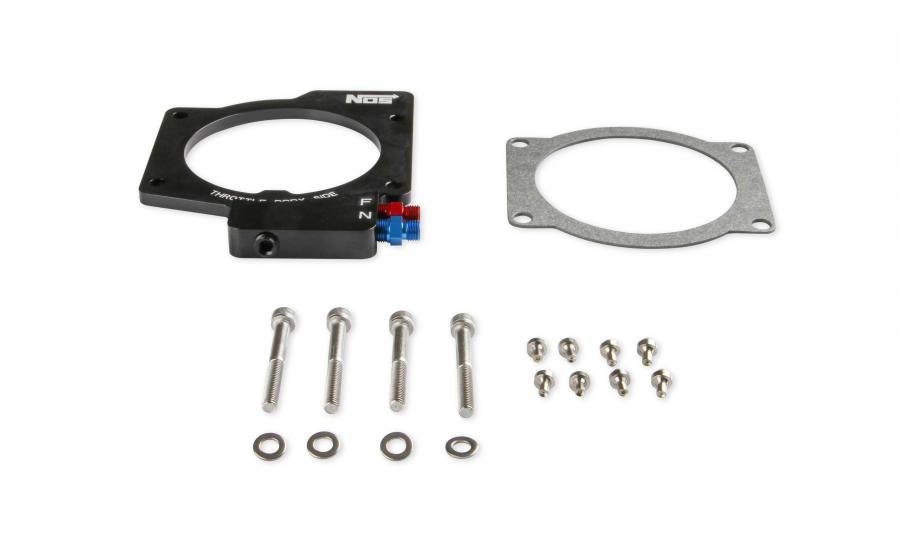

This kit includes a 6061 billet aluminum, black anodized nitrous plate, assembled and ready to bolt on, stainless socket head bolts, 8 NOS stainless jets to support power levels of 75, 100, 125 & 150 rear wheel horsepower increases.
Features:
- Single ¼” plate between the throttle body and manifold
- Throttle body mounts in stock orientation
- Supports up to 250 RWHP (Rear Wheel Horse Power)
- Includes jetting for 75, 100, 125, & 150 RWHP
- New plate outlet design maximizes distribution
- 6061 Billet Aluminum, CNC Machined Plate
- Also available as a complete kit for the 2010-2015 LS3 Camaro; p/n 05160NOS
Retains stock throttle body location and orientation using a 1/4" billet aluminum plate. Ideal for any LS, 90mm, 4-bolt application. Supports up to 250 Horsepower
Installation Notes:
Retains stock throttle body location and orientation using a 1/4" billet aluminum plate. Ideal for any LS, 90mm, 4-bolt application. Supports up to 250 Horsepower
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Submodel |
Years |
Engine |
| Chevrolet |
Camaro |
1SS |
2011 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
1SS |
2012 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
2SS |
2011 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
2SS |
2012 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
SS |
2013 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
SS |
2014 |
6.2L / 376 / V8 |
| Chevrolet |
Camaro |
SS |
2015 |
6.2L / 376 / V8 |
