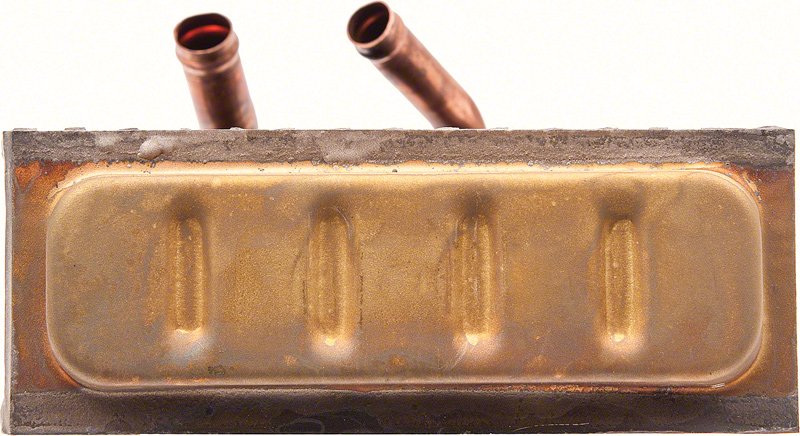

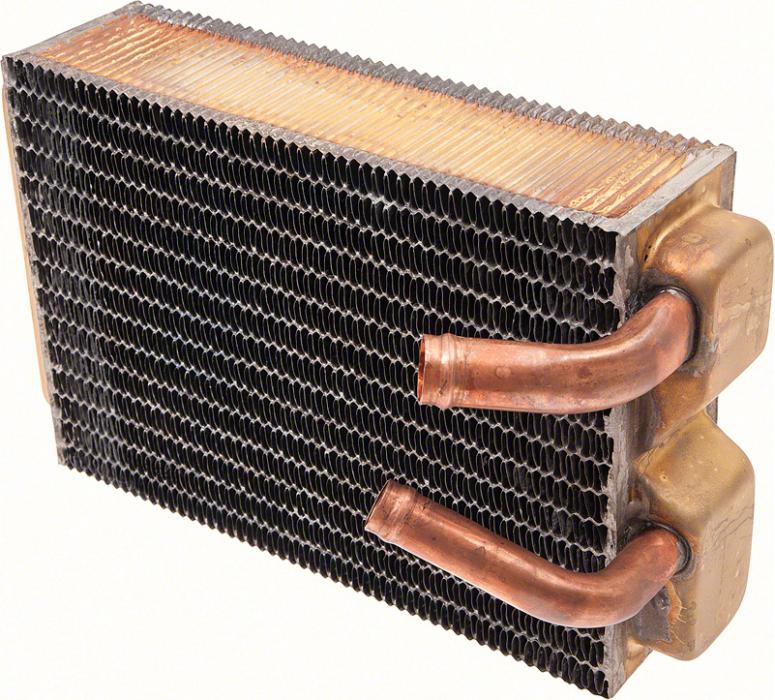

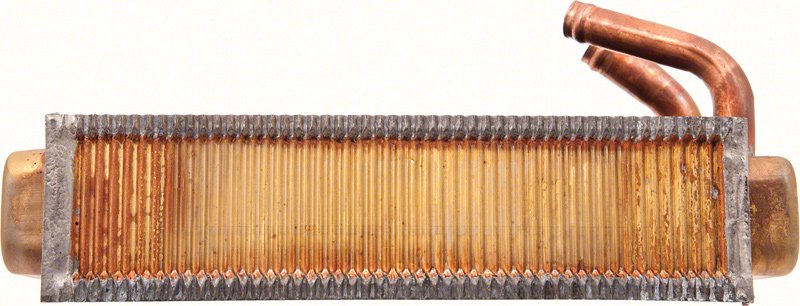

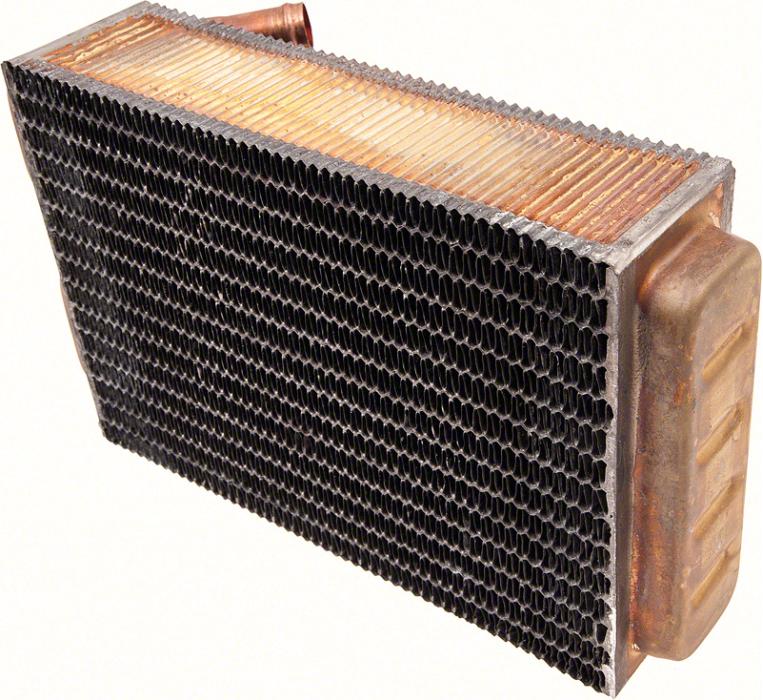

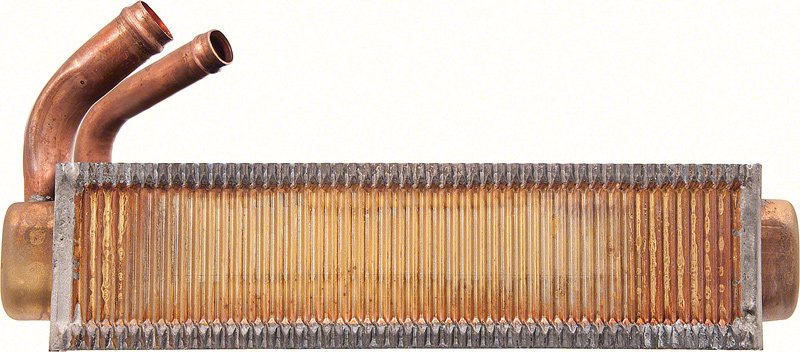

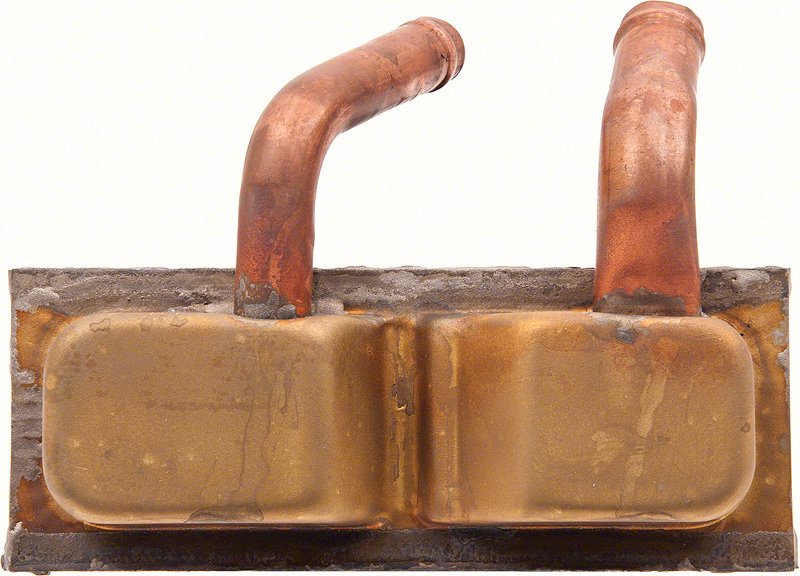

Original reproduction heater core assembly for 1967-68 Camaro, Firebird & 1968 Chevy II Nova 6 cylinder and small block block models without air conditioning. Each heater core is manufactured to correct factory specifications and features a copper core and brass tank. Replaces original exactly and mounts inside heater box assembly. Measures 9-1/2" x 6-1/2" x 2-1/2".
Heater Core Specifications:
Brass Tank / Copper Core
Measures; 9-1/2" high x 6-1/2" width x 2-1/2" deep
Includes a 5/8" Inlet
Includes a 3/4" Outlet
Chevrolet Applications:
1968-1968 Chevrolet Camaro (w/o AC, 6 cyl, small block) (*early production w/2-1/2" core)
1968-1968 Chevrolet Nova (w/o AC, 6 cyl, small block)
Pontiac applications:
1967-1968 Pontiac Firebird (6 cylinder, small block, without AC)
Additional Information
Fitment Note: There was a mid-year change in size of the core in 1968 Camaro models without AC. 1968 Camaro 6 cylinder and small block models later production models were equipped with 2" core. Refer to part# 3011432 for 2" style.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
