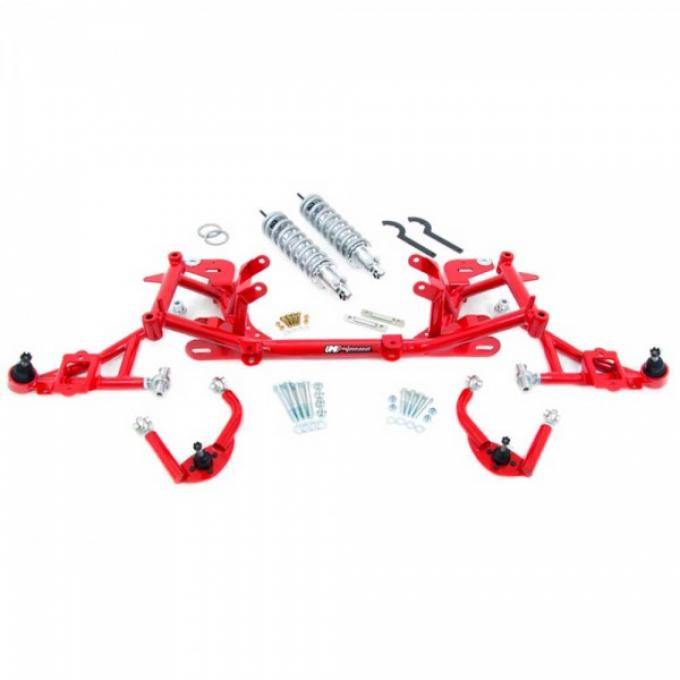

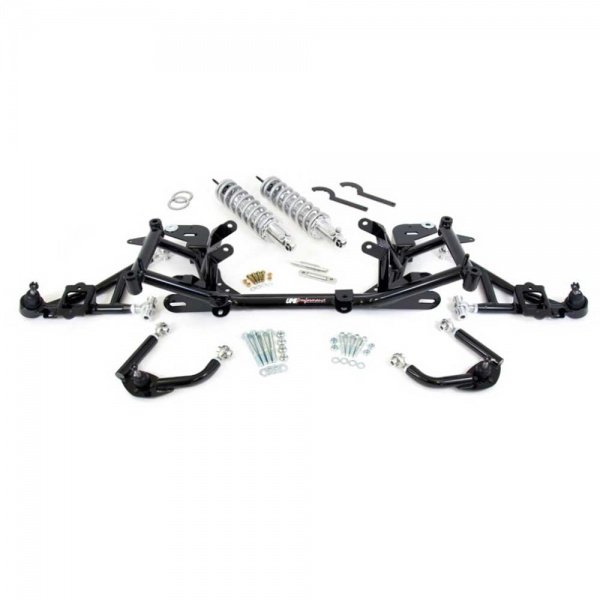

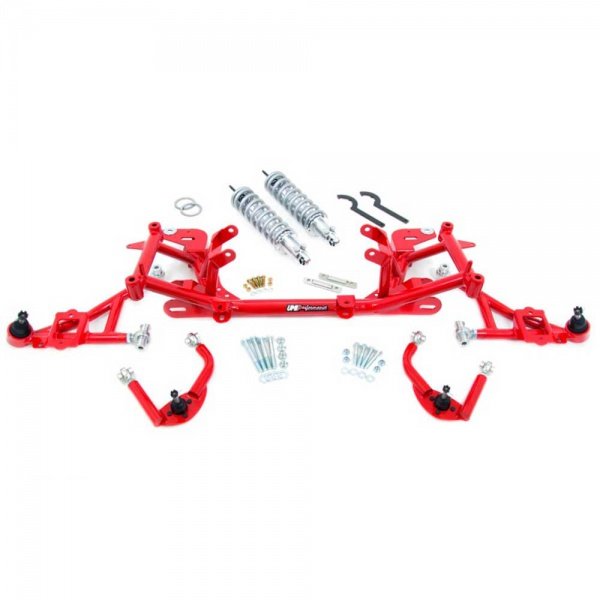

UMI Front Suspension Package, Stage 5, LS1, 1998-2002

UMI Front Suspension Package, Stage 5, LS1, 1998-2002
UMI Front Suspension Package, Stage 5, LS1, 1998-2002UMI Front Suspension Package, Stage 5, LS1, 1998-2002
from $5,519.99 kt

Available Options

Model: 3170532
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

  • Drag Series
  • Heavy Duty K-Member With Dual Tube Construction
  • Tubular Upper And Lower A-Arms With Race Quality Rod Ends
  • Wide Flanged Aluminum Step Bushings In A-Arms
  • Premium Upper And Lower Ball Joints Installed
  • Double Adjustable Race Style Bearing End Viking Shocks
  • Height Adjustment From 0” To 3” Lowering
  • 300lb/in Usa Made Front Springs, For Drag Racing
  • 43lbs Of Front End Weight Savings
  • Works With Factory Steering Rack
  • Direct Bolt In Replacement, No Welding
  • Made In The USA

Our dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The rod end upper and lower a-arms reduce friction and unsprung weight while ensuring super quick weight transfer. UMI's k-member and a-arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Upper and lower a-arms are assembled with Teflon lined race quality rod ends and premium ball joints. The included adjustable a-arms add strength, weight reduction, reduced friction and alignment adjustments when needed. Increased caster for straight line stability can be achieved very easily with this bolt in system. Stage 5 includes Viking A226 bearing mounted front coilovers with double adjustable shocks that allow ride height, compression and rebound adjustment. The A226's feature bearing ends in place of polyurethane for friction reduction, improved response and longer lasting performance. The ride height adjustment is accomplished with the included spanner wrenches and thrust washers. The compression and rebound adjusters are clicked by hand (no tools!) and feature a total of 361 possible valving combinations. The included springs are 300lb/in and work excellent on drag race applications and vehicles with front end weight reduction. The UMI Stage 5 kit is found under many single digit F-body cars. Designed for LS1 equipped Camaros 1998, 1999, 2000, 2001, 2002

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Camaro 1998 - 2002
Pontiac Firebird 1998 - 2002
