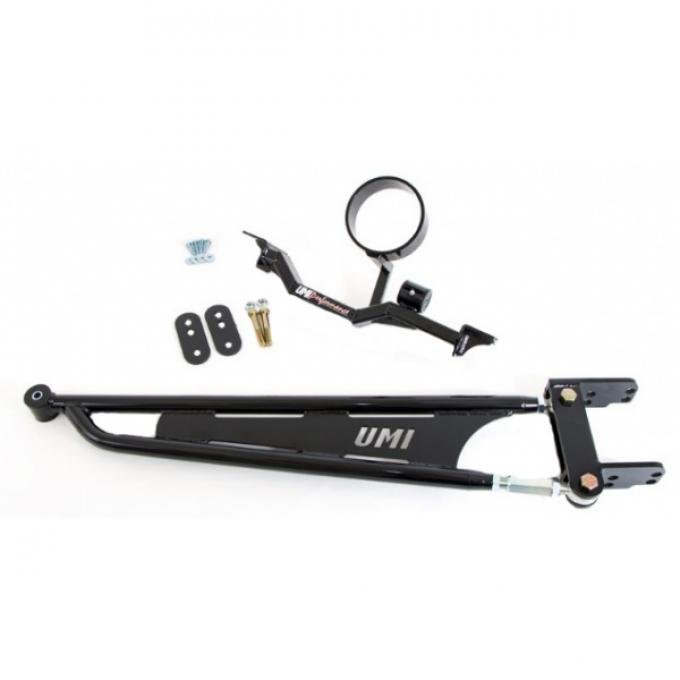

UMI Performance Short Torque Arm, Adj, Long Tubes, DS Loop- Black | 2203-B Camaro 1993-02

UMI Performance  Short Torque Arm, Adj, Long Tubes, DS Loop- Black | 2203-B Camaro 1993-02
$1,217.99 kt
NEWARRIVING SOONEstimated Ship Date 07/03/2024 (If Ordered Today)
Model: 3174091
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

  • Fits 1993 To 2002 Chevrolet Camaro
  • Fits 1993 To 2002 Pontiac Firebird

Torque Arm Benefits:

  • Removes Torque Arm From Transmission Tail Shaft Protecting Transmission
  • From Damage
  • Pivot Brackets Allow Instant Center Adjustment
  • Eliminates Wheel Hop And Solves Traction Problems
  • Reduces Front End Nose Dive During Braking
  • Allows For Easy On The Car Pinion Angle Adjustments
  • Grease-able Polyurethane Bushings Designed To Keep Road Noise At Aa Minimum
  • Bolt-on Design Requires No Welding Or Drilling During Installation

Build Features:

  • Fabricated From 1.250” x 0.120” DOM Seamless Steel Tubing
  • Crossmember Uses 0.120” x 2.000” Rectangular Tubing
  • TIG Welded 4140 Chromoly Tube Aadaptors, Built In House
  • Pinion Changes Made Using 4140 Chromoly Heat Treated Adjuster, Built In House
  • CNC Laser Cut Mounting Plates To Insure Hole To Hole Aaccuracy
  • Rear Mounting Plates Machined From 3/8” Thick Mild Steel For Strength
  • Designed To Fit Stock Rear End As Well As 12- Bolt, S60 And 9” Housings
  • Torque Arm Attaches To Mount Using Ssolid ¾” Rod Eyes And Grade 8 Hardware
  • Durable Gloss Powder Coat Finish

Track abuse, street abuse, or just flat-out abuse, this torque arm is designed to handle it all! Eliminate unwanted traction problems by adding a UMI Performance tunnel brace mounted torque arm. This aftermarket torque arm replaces the flimsy factory torque arm while adding strength, rigidity and eliminating suspension flex. UMI’s torque arm design relocates the front torque arm mounting point off the transmission tail shaft protecting the transmission and preventing transmission damage. A shorter torque arm improves weight transfer on acceleration. General Motors tail shaft mounted design works great for a stock driven vehicle however it was not designed to take the abuse of a drag car. UMI’s tunnel mounted torque arm bolts to existing floor pan holes using 3/16” thick mild steel laser cut mounting plates and metric grade 10.9 hardware. The torque arm attaches to the supplied cross brace using polyurethane bushings on both the supplied cross brace and torque arm to help absorb noise. The torque arm rear mount is 3/8” thick CNC machined mounting plates and are appropriately drilled to fit the stock rear ends as well as aftermarket 12-Bolt’s, 9” Rear-end housings and Strange S60.

Exhaust clearance: P/N 2202 is designed with a drop down front cross member to clear virtually all aftermarket header/y-pipe set-ups on the market.  It will also clear most merge collectors such as QTP and TSP y-pipes. P/N 2202 does reduce ground clearance, if vehicle has a tighter fitting y-pipe set up please see P/N 2200.

Chromoly material- Chromoly version uses 1.250" x 0.095" 4130 chromoly  tubing and 100% TIG welded . This adds increased strength and reduces product weight, recommended for vehicles running 10.50’s and faster in the ¼ mile.

Rear torque arm hardware kit- We highly recommend purchasing a new hardware kit if running this torque arm on a factory rear-end, Strange or other similar rear-ends that use a straight through long bolt design. Factory torque arm bolts will work however are slightly too short and may not work correctly. For Moser Engineering 12-Bolt rear-end use P/N 2998, the Moser 12-Bolt uses four ½” bolts, P/N 2998 includes longer ½” bolts and spacers to reduce movement. P/N 2998 is for Moser 12-Bolt only, use P/N 3003 on Moser 9”.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Camaro 1993 - 1999
