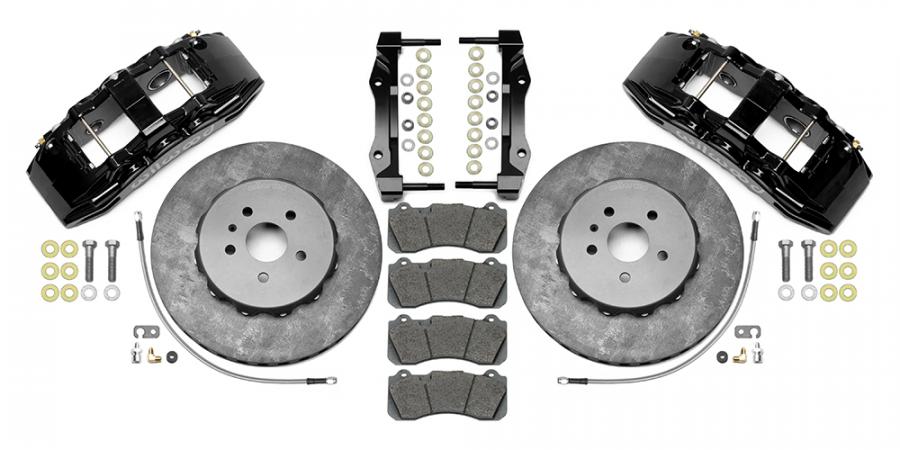

Wilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSIC

Wilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSIC
Wilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSICWilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSICWilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSICWilwood Brakes 2010-2015 Chevrolet Camaro SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-15434-CSIC
$15,215.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 03/28/2024
Model: 3922320
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

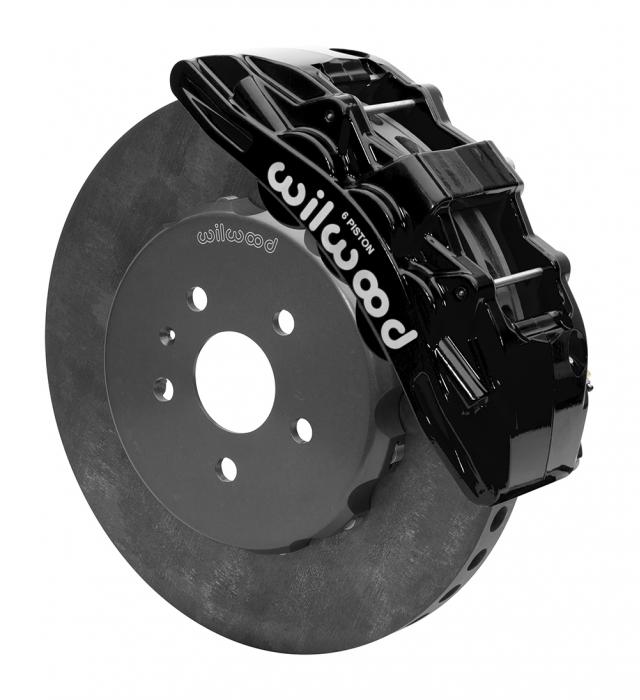

SX6R WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for dual purpose street and track vehicles.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1301.pdf537.83KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Camaro LS 2015 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Camaro LT 2015 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
Chevrolet Camaro SS 2010 - 2015 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
with OE Brembo Brakes
Chevrolet Camaro Z/28 2015 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
with OE Brembo Brakes
Chevrolet Camaro ZL1 2015 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT
with OE Brembo Brakes
Chevrolet Camaro 2010 - 2014 KIT,FRONT,10-15 CAMARO,SX6R,CSiC,15.00 ROTOR,W/LINES; RTR:15.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:SX6R, 6-PISTON, BLACK POWDER COAT

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit

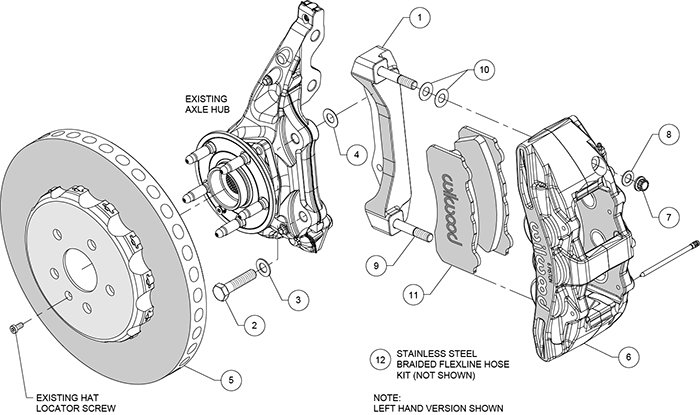

Kit Components & Specs / Rotors
Bedded No
Design Type C/SiC
Dynamically Balanced No
Left Hand - Part No 165-15433
Material C/SiC
Outside Diameter (in) 15.00
Right Hand - Part No 165-15433
Style Plain Face
Surface Finish Plain
Type WCCD Carbon-Ceramic
Vane Count 36 V
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-5972
Pad Retainer 180-14649
Replacement Dustboot Call
Replacement Piston 1 200-7519
Replacement Piston 2 200-7513
Replacement Piston 3 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.72
Finish Color Type III Anodize
Hat - Part No 170-15432
Hat Offset Dimension (in) 0.910
Material Aluminum
Stud Diameter - BC 1 0.640
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Hat - Flared Bell
Kit Components & Specs / Calipers
Brake Pad Area (In²) 15.9
Brake Pad Plate D1792
Brake Pad Volume (In³) 7.66
Finish Color Black Powder Coat
Left Hand - Part No 120-14863-BK
Mount Type Radial
Pad Compound PCM
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14862-BK
Type SX6R
Caliper Type 6 - Black Powder Coat

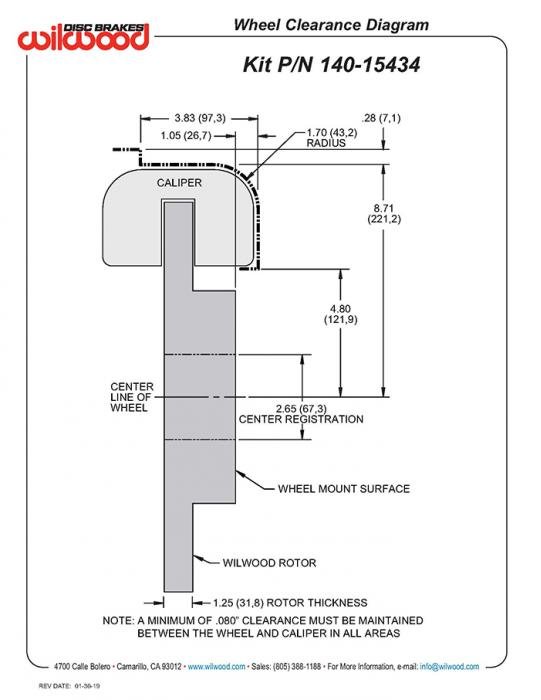

Min Wheel Diameter Req'd* 19
Mount Type Radial
Rotor Diameter 15.00
Spindle Type Factory Disc Spindle
Parts & Accessories / Brake Lines
Front Line Kit 220-11382
