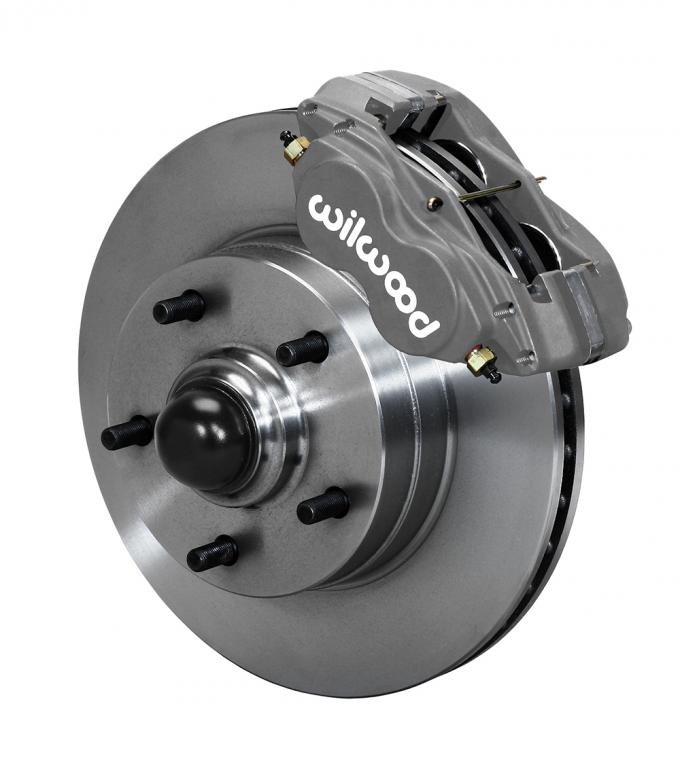

Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272

Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272
Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272Wilwood Brakes Classic Series Dynalite Front Brake Kit 140-15272
$856.99 ea
NEWARRIVING SOONEstimated Ship Date 12/24/2021 (If Ordered Today)22 available from WILWOOD ENGINEERING as of 11/28/2021
Model: 3922235
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

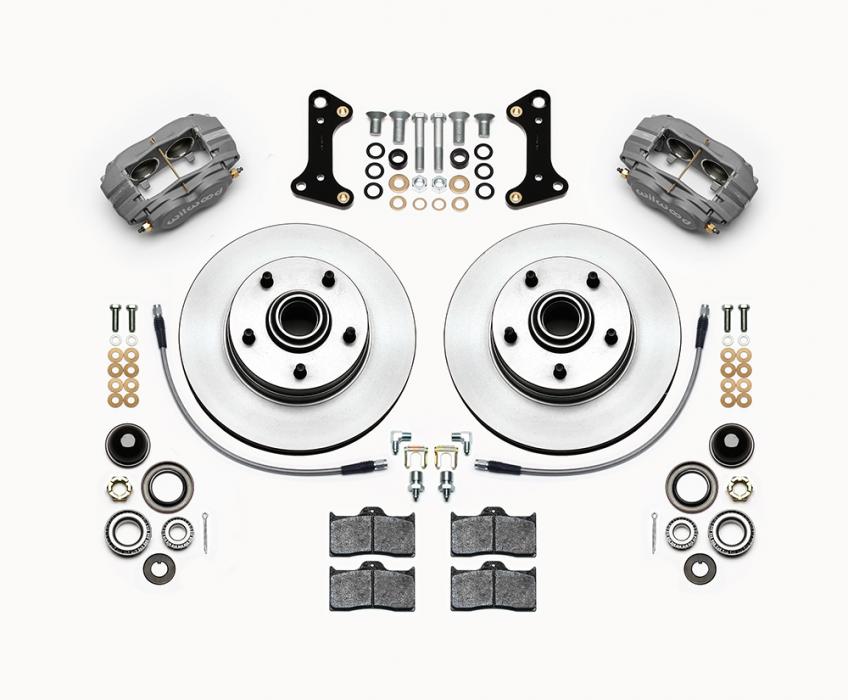

Wilwood's Classic Series front disc brake kits for 1964 to 1974 GM A-body, X-body and 1967-69 F-body offer disc brake upgrade solutions for OEM Drum & Disc brake spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.00" diameter x 1.00” thick one-piece rotors. This new kit widens the track by only +.47" from original drum brake position or narrows by -.03" from the original disc brake rotor assembly. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, braided steel line kit and detailed installation instructions.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1143.pdf493.08KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Camaro 1967 - 1969 KIT,FRONT,CAMARO,67-69,NOVA,64-72,11.00 HUB/ROTOR,W/LINES; RTR:11.00-IN DIA, 1 PC HUB AND ROTOR, UNDRILLED; CLPR:FORGED DYNALITE-M, 4-PISTON, TYPE III ANO
Universal Flexline kits available: 220-7056 (14
Pontiac Firebird 1967 - 1969 KIT,FRONT,CAMARO,67-69,NOVA,64-72,11.00 HUB/ROTOR,W/LINES; RTR:11.00-IN DIA, 1 PC HUB AND ROTOR, UNDRILLED; CLPR:FORGED DYNALITE-M, 4-PISTON, TYPE III ANO
Universal Flexline kits available: 220-7056 (14

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-15132
Material Iron
Outside Diameter (in) 11.00
Right Hand - Part No 160-15132
Style Plain Face
Surface Finish Plain

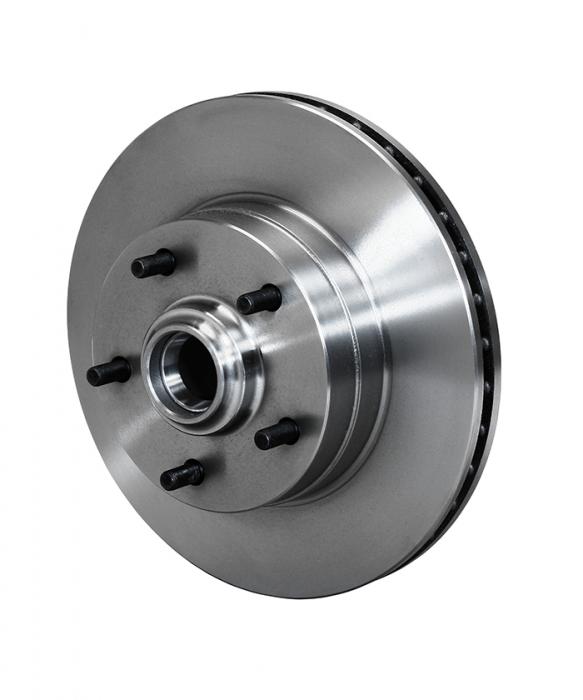

Type 1 PC Hub and Rotor
Vane Count Vented
Width (in) 1.00
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 180-0056
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Type III Ano
Left Hand - Part No 120-13551
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13551

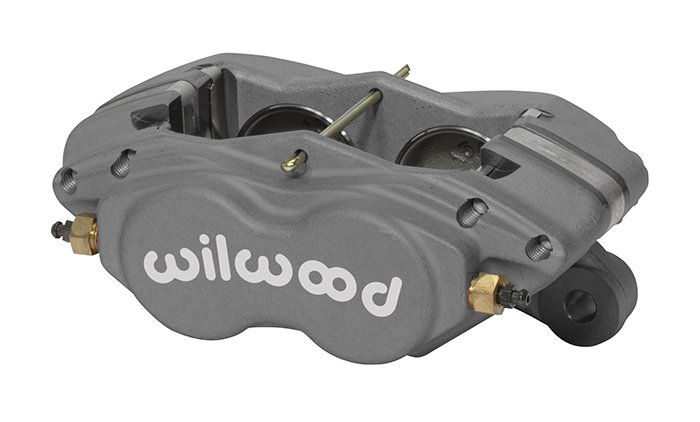

Type Forged Dynalite-M
(Increase / Decrease Track Width)
Caliper Type 4 - Type III Ano

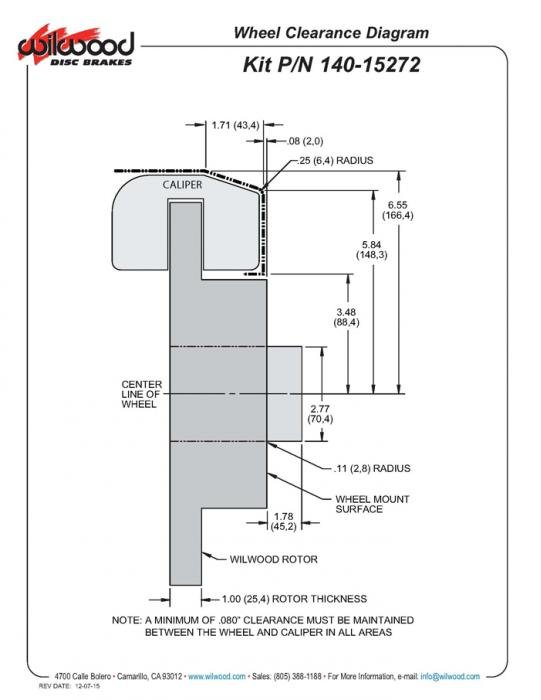

Min Wheel Diameter Req'd* 14
Mount Type Lug
Rotor Diameter 11.00
Spindle Type Drop Spindle Factory Disc Spindle Factory Drum Spindle
Parts & Accessories / Brake Lines
Front Line Kit 220-7699
Kit Summary
OE Hub Offset +.47
