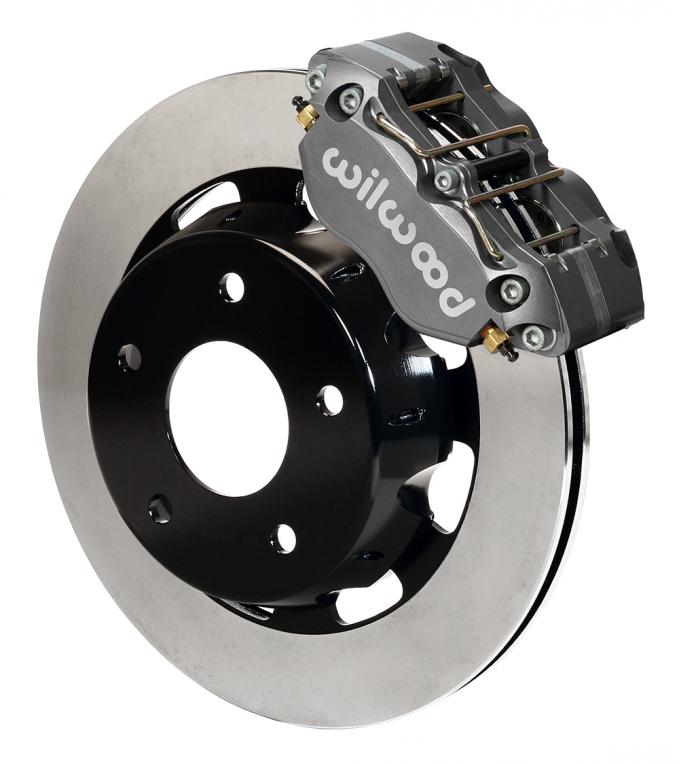

Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787

Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787
Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787Wilwood Brakes Dynapro Radial Front Drag Brake Kit 140-10787
$1,230.99 ea
NEWARRIVING SOONEstimated Ship Date 03/01/2022 (If Ordered Today)Out of stock at WILWOOD ENGINEERING as of 01/25/2022
Model: 3920842
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

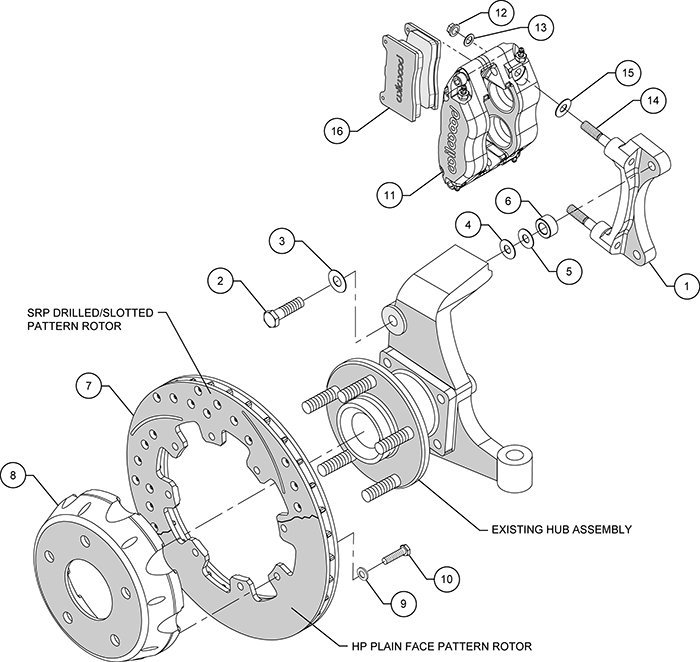

NDPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16” or larger wheels generally do not fit inside the popular 15” drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the NDPR caliper. Kits with 3/8” steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81” rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds653.pdf268.52KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chevrolet Camaro 1998 - 2002 KIT,DRAG,FRONT,CAMARO 98-02,NDPR 1.75x.81,ANO; RTR:11.75-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Chevrolet Camaro 1993 - 1997 KIT,DRAG,FRONT,CAMARO 98-02,NDPR 1.75x.81,ANO; RTR:11.75-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Drum Brake Rear Models
Pontiac Firebird 1998 - 2002 KIT,DRAG,FRONT,CAMARO 98-02,NDPR 1.75x.81,ANO; RTR:11.75-IN DIA, ULTRALITE HP 32, UNDRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit

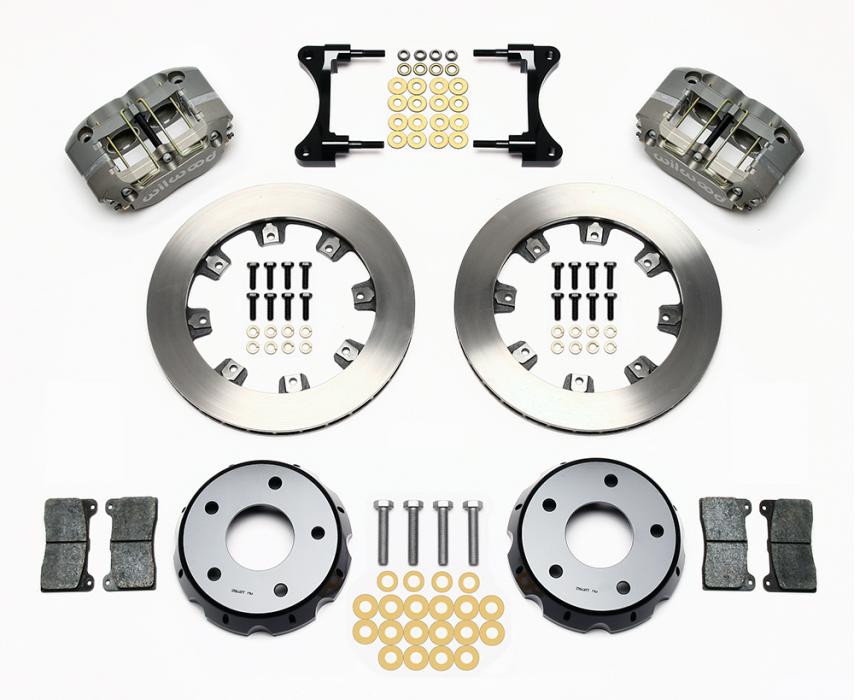

Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-5841
Material Iron
Outside Diameter (in) 11.75
Right Hand - Part No 160-5841
Style Plain Face
Surface Finish Plain
Type Ultralite HP 32
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-10018
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 300-9636
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7812
Brake Pad Volume (In³) 2.1
Finish Color Type III Ano
Left Hand - Part No 120-10000
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-10000
Type Narrow Dynapro Radial Mount
Caliper Type 4 - Type III Ano

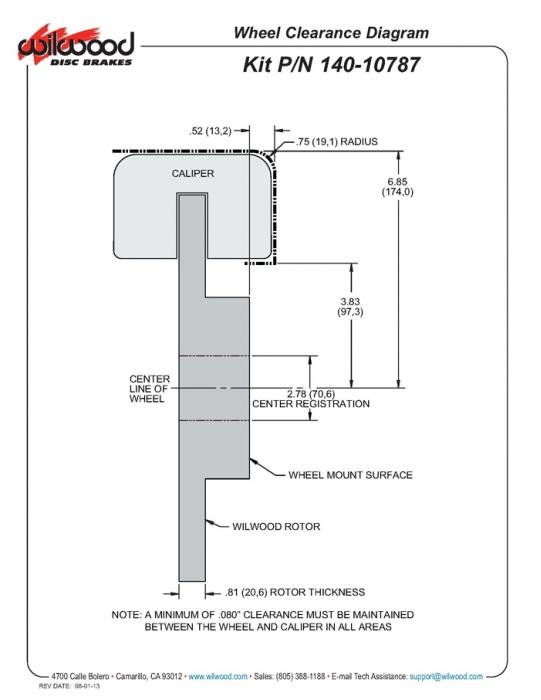

Min Wheel Diameter Req'd* 15
Mount Type Radial
Rotor Diameter 11.75
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-6746
