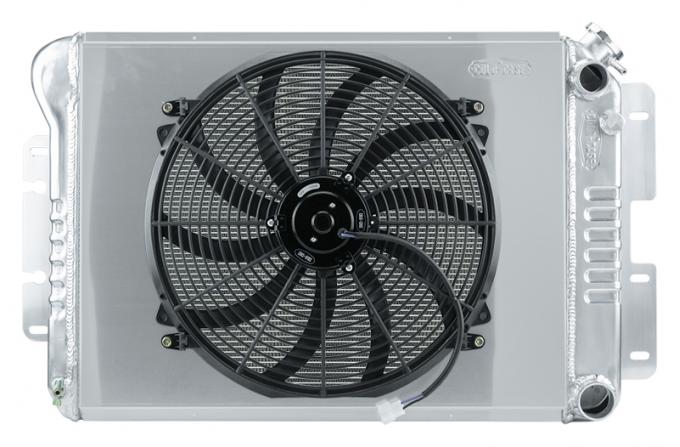

Cold Case Radiators 67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit CHC547AK

Cold Case Radiators 67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit CHC547AK
$1,135.99 kt

Popular Addons


NEWARRIVING SOONEstimated Ship Date 04/10/2024 (If Ordered Today)
Model: 3933882
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SHIPPING
INCLUDED

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • Fan Diameter 16 Inch
  • All Aluminum
  • (2) 1.25 inch Tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • Dual Flow Design
  • Direct fitment for 67-69 F-Body cars with LS motors
  • Old Part Number: RPE547AK

Radiator Specs

  • Core Height 16.85 inch
  • Core Width 23 inch
  • Overall Height 19 inch
  • Overall Width 30 inch
  • Overall Thickness 6 inch
  • Upper Hose 1.22 inch
  • Lower Hose 1.37 inch
  • Tubes (2) 1.25 inch Tubes
About Cold Case Radiators

Cold-Case Radiators® is a division of Max Performance Inc, a leading supplier of auto restoration parts and accessories. Cold-Case Radiators® was founded in 2014 when a need for high quality aluminum radiators at a fair price surfaced. We're not new to the automotive business though. Max Performance Inc has been supplying the classic car market for over 35 years and Pypes Exhaust is our sister company, who has specialized in performance exhaust since 2003.

Our goal is simple. At Cold-Case Radiators®, we want to make aluminum performance radiators and accessories available and affordable to everyone. Even with our reduced prices, we do not sacrifice quality. All of our radiators are 100% tig welded aluminum. There is no cutting corners here.

We specialize in the Muscle Car market. From the 1950s all the way to present day, you will find Cold-Case Radiators® on American built muscle. The next time you want to upgrade that engine bay, remember the name...Cold-Case Radiators®.

Best thing about us is...Our radiators all come with a limited lifetime warranty! We stand behind our quality, research, and our products. If our radiator doesn't keep your car cool, send it back as part of our '60 day COOL Guarantee.'

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Camaro RS 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Chevrolet Camaro SS 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Chevrolet Camaro Z28 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Chevrolet Camaro 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird 350 HO 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird 350 1968 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird 400 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird HO 1967 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird Sprint 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird Trans Am 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder
Pontiac Firebird 1967 - 1969 67-69 F-Body LS Swap 16 Inch
LS Swap
8 Cylinder

Specifications:

Blade Material Curved Nylon
CA Proposition 65 CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cylinders 8 Cylinder
Engine LS Swap
Fan Diamter In 16 Inch
Fan Included Yes
Fan Quantity 1
Finish Polished
Fits 67-69 F-Body LS Swap 16 Inch
Includes Includes radiator, fans and shroud
Manufacturer Warranty Limited Lifetime Warranty
Material Aluminum
Max Fan Cfm 2800 CFM
Shroud Included Yes
Thickness 6.75 Inch
Transmission Type Manual
Vehicle Type Car
Wiring Included No
