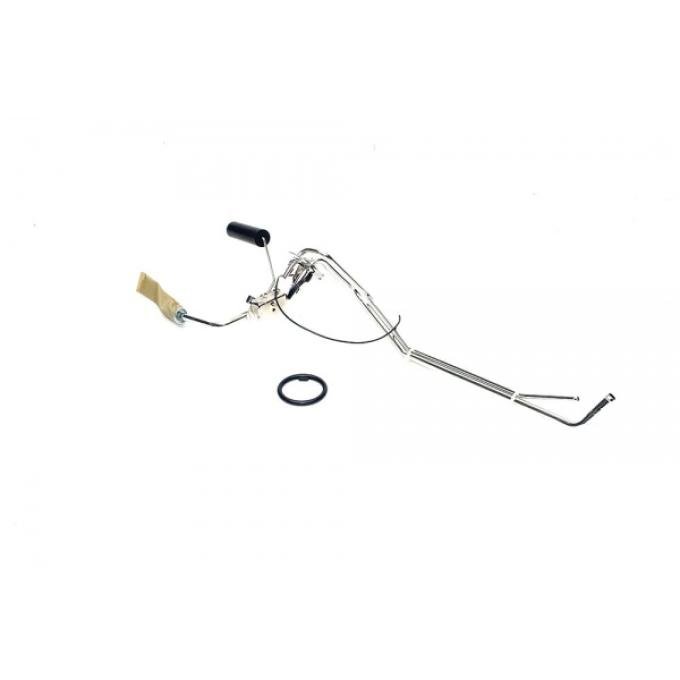

A direct-fit sending unit engineered for 1969 Chevrolet Camaro and Pontiac Firebird fuel tanks, designed to provide accurate fuel level readings while accommodating dual fuel lines (3/8" and 1/4"). This dual-line sending unit replaces worn or damaged original equipment, restoring reliable gauge operation and simplifying installation with precision-fit mounting and corrosion-resistant fittings. Ideal for restorations and performance builds, it ensures dependable fuel plumbing and long-term durability under road conditions.
Features:
- Fits 1969 Chevrolet Camaro and 1969 Pontiac Firebird fuel tanks (dual-line configuration).
- Accepts both 3/8" and 1/4" fuel line connections for flexible plumbing and return-style systems.
- Durable, corrosion-resistant metal fittings and quality electrical sender for long service life.
- Direct-replacement design for an OEM-style fit and restored fuel gauge accuracy.
- Simple swap-in replacement to eliminate intermittent gauge readings and prevent fuel line leaks during restoration.
Installation / Application:
- Difficulty: 3/5
- Estimated time: 1–2 hours
Instructions:
- Work in a well-ventilated area, disconnect the negative battery terminal, and relieve fuel system pressure per vehicle procedure.
- Safely support the vehicle on jack stands or a lift. If required, drain or catch fuel from the tank into a suitable container.
- Access the sending unit—either through the interior access plate (if equipped) or by lowering the fuel tank. Support the tank before removing straps or hardware.
- Carefully disconnect fuel lines (3/8" and 1/4"), vent/return fittings, and the electrical connector from the existing sending unit. Label lines if needed for reassembly.
- Remove the sending unit retaining ring or bolts, then lift the old unit out. Inspect the tank sealing surface and clean away old gasket material or debris.
- Install a new gasket or O-ring and position the replacement sending unit in the tank. Align sender properly and secure with the retaining ring or bolts to the recommended torque.
- Reconnect the 3/8" and 1/4" fuel line fittings and the electrical connector. Replace any worn hose clamps or fuel hoses as needed.
- Lower the tank (if removed), reconnect the battery, and turn the ignition to the ON position to cycle the fuel pump. Check for leaks at all fittings and confirm proper gauge operation.
- Start the engine and verify stable gauge readings and leak-free connections. Re-torque fittings if required after initial run-in.
About Redline Restomotive
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Crafted for both durability and aesthetic accuracy, Redline Restomotive® parts are ideal for those who value authenticity in their restoration projects. Whether restoring a car for display, personal enjoyment, or roadworthiness, customers rely on Redline Restomotive® for parts that not only fit perfectly but also contribute to the overall integrity and longevity of the vehicle. Each item is carefully engineered to replicate the fit, finish, and functionality of original components, making Redline Restomotive® a trusted name in restoration circles.
The extensive product catalog from Redline Restomotive® covers a wide variety of categories, allowing classic car owners to source everything from essential mechanical parts to subtle interior details. This comprehensive approach enables a cohesive restoration experience, where customers can confidently maintain both the exterior and interior authenticity of their vehicles. With Redline Restomotive®, every detail matters, providing the perfect balance between innovation and tradition for classic car preservation.
For more information or to explore their product offerings, you can visit retailers such as Muscle Cars & Classics, which feature a comprehensive selection of Redline Restomotive® products.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Camaro |
1969 |
