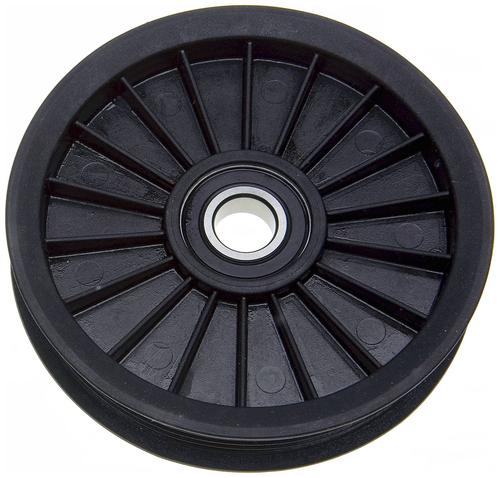

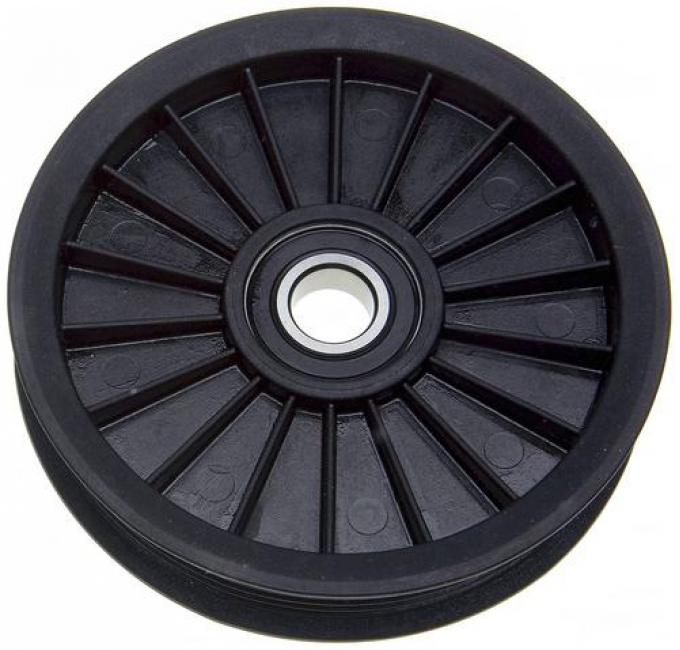

STANDARDBelt Drive Idler/Tensioner Pulley; DriveAlign Idler Pulleys provide OE-quality fit to passenger cars and light trucks, performing as a locked center tensioning pulley, an automatic belt tensioner pulley or an idler pulley. Steel and thermoplastic construction designed to tight manufacturing tolerances for high durability and quality performance Built to last with a superior resistance to dirt, salt, chemicals and other under-hood contaminants OE-quality fit for virtually every domestic or import vehicle on the road today Bearings meet or exceed OE standards with application-specific speed and load requirements, to withstand high under hood temperatures Premium bearings eliminate bearing noise Mounting hardware included for some popular applications Reliable operation under severe conditions
| Download Name | File Size |
| gatestechnicalservicebulletin_tsb_0068_.pdf | 291.38KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Chevrolet | Camaro | Base | 1988 | |
| Chevrolet | Camaro | Iroc-Z | 1988 - 1989 | engine V8 - 5.0L 305ci GAS TBI vin E type L03 - 2 valve OHV engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Chevrolet | Camaro | Iroc-Z | 1990 | engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Chevrolet | Camaro | RS Heritage Edition | 1992 | |
| Chevrolet | Camaro | RS | 1989 - 1992 | |
| Chevrolet | Camaro | Z28 Heritage Edition | 1992 | engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Chevrolet | Camaro | Z28 | 1991 - 1992 | engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Pontiac | Firebird | Base | 1989 - 1992 | |
| Pontiac | Firebird | Base | 1988 | engine V8 - 5.0L 305ci GAS TBI vin E type L03 - 2 valve OHV engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Pontiac | Firebird | Formula | 1989 - 1992 | engine V8 - 5.0L 305ci GAS TBI vin E type L03 - 2 valve OHV engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Pontiac | Firebird | Trans Am GTA | 1989 - 1992 | engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Pontiac | Firebird | Trans Am | 1988 - 1989 | engine V8 - 5.0L 305ci GAS TBI vin E type L03 - 2 valve OHV engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Pontiac | Firebird | Trans Am | 1990 - 1992 | engine V8 - 5.7L 350ci GAS MFI vin 8 - 2 valve OHV |
| Belt Type | Serpentine |
| Belt Width (in) | 13/16 Inch |
| Belt Width (mm) | 20mm |
| Contact Surface | V-Ribbed Grooved |
| Flanged | Yes |
| Material | Thermoplastic |
| Number Of Pulley Grooves | 6 |
| Number of Pulleys | 1 |
| Pulley Inside Diameter (in) | 0.670 Inch |
| Pulley Inside Diameter (mm) | 17mm |
| Pulley Outside Diameter (in) | 5 Inch |
| Pulley Outside Diameter (mm) | 127mm |
| Pulley Width (in) | 1-1/32 Inch |
| Pulley Width (mm) | 26mm |
| Unit of Measure | Each |
| UPC | 072053880045 |
| Warranty | 1 Year Limited Warranty |
