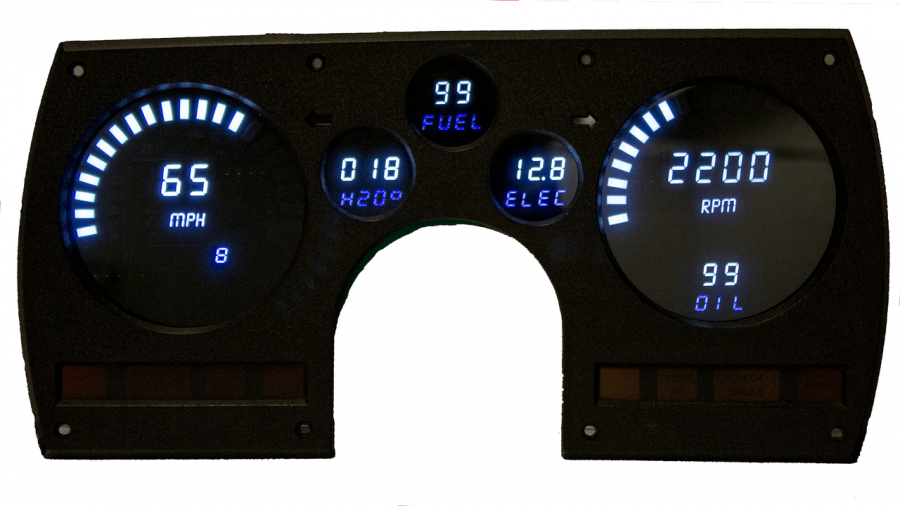

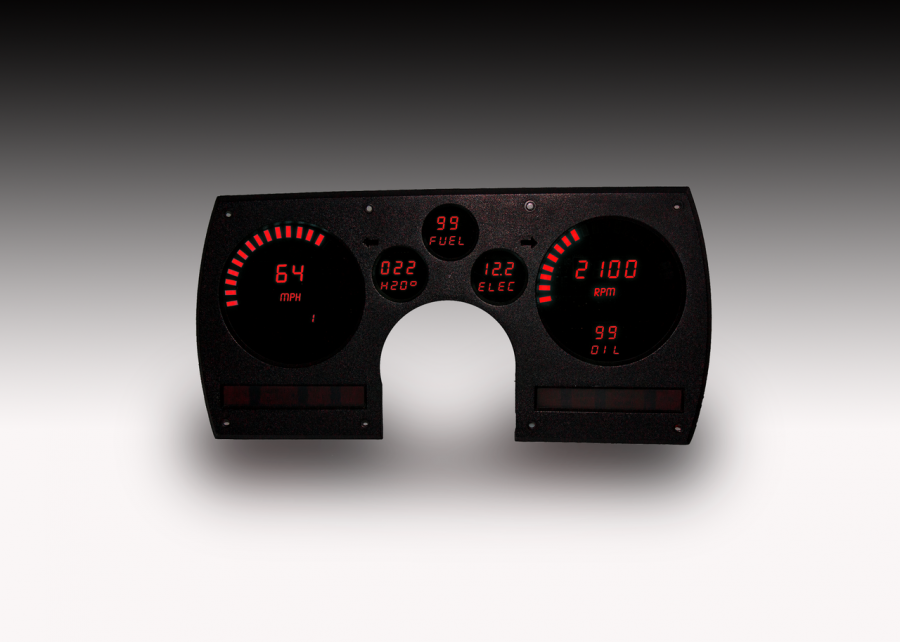

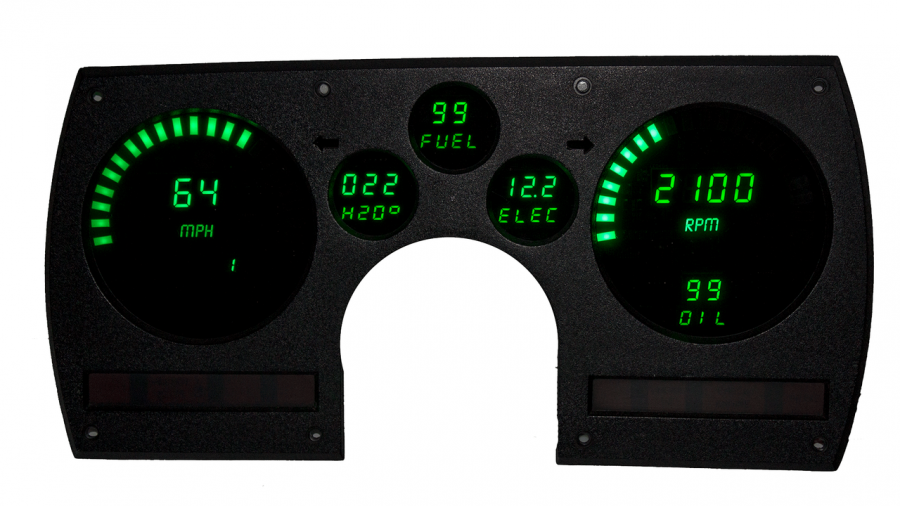

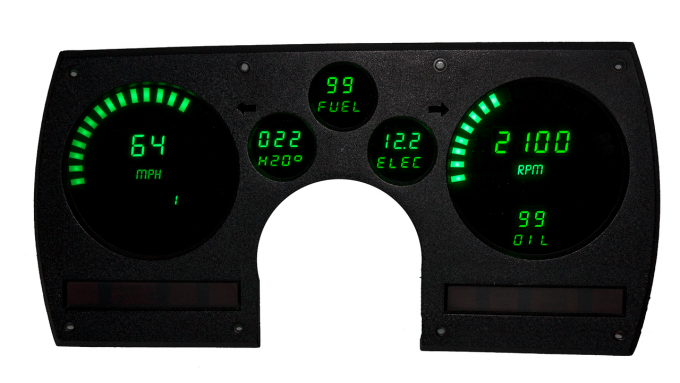

1982-1990 Camaro LED Digital Replacement Gauge Panel – DP4003
You will love your 1982-1990 Camaro with a best-in-class 1982-1990 Camaro LED Digital Replacement Gauge Panel from Intellitronix. The 82-90 Camaro dash comes with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal water temperature S8013, oil pressure S8434, and speedometer S9013 sending units including sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Speedometer reads up to 255 mph and includes odometer, trip meter, one button calibration, regardless of tire size, gear ratio, or transmission, 0-60 time, ¼ mile elapsed time and high-speed recall. The speedometer can be used with electronic cruise control senders or use included S9013 (universal speedometer sending unit) if your vehicle is not equipped with a functional cruise control. Everything directly fits into your existing housing, but you may need to run some new wires to the speed sensor.
Tachometer displays 0-9999 RPM in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). Fully programmable for 1-2-4-6-8-10-12-cylinder engines.
Water Temperature displays a range of 18–255°F.
Oil Pressure shows a range of 0–99 PSI.
Voltmeter displays 7.0-25.5 volts range. No sending unit required.
Fuel Level reads 0 – 99% range in 1% increments. User programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders.
The panel features turn signals, high beam indicators and parking brake.
BEZEL NOT INCLUDED
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
|Chevrolet||Camaro||1982 - 1990|
|Color||Red, Blue, Green, White|
|Speedometer & Temperature||MPH & Fahrenheit, KMH & Celsius|
|Warranty||LIFETIME FACTORY WARRANTY|
