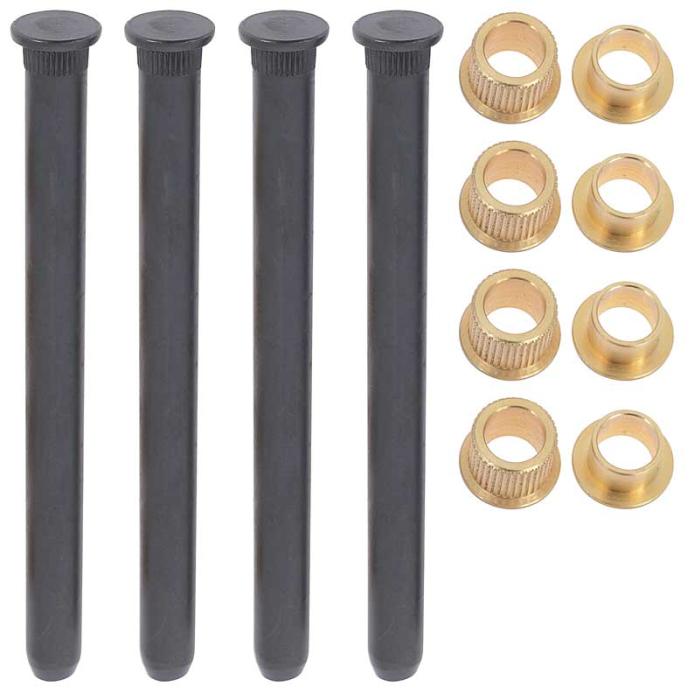

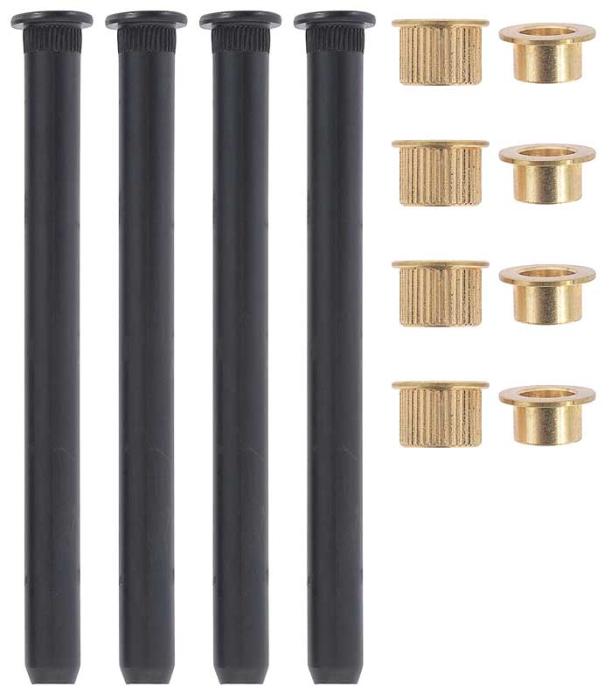

Reproduction of the original door hinge components for use on various GM models. Repair the broken door hinges with this comprehensive repair set. Each repair kit includes 4 properly hardened shoulder pivot pins and 8 sintered bronze bushings. Replacing the pins and bushings will add new life to existing door hinges. One set will repair both 2 upper and 2 lower hinges. 1 set required per vehicle. Note: Does not replace 15mm OD bushings. We recommend checking the original bushing size before ordering.
Popular Chevrolet Applications:
1970-1979 Chevrolet Camaro
1980-1981 Chevrolet Camaro (except with thick 15mm OD bushings)
1969-1975 Chevrolet Impala (front upper and lower, rear upper)
1969-1972 Chevrolet Biscayne (front upper and lower, rear upper)
1969-1975 Chevrolet Bel Air (front upper and lower, rear upper)
1969-1975 Chevrolet Caprice (front upper and lower, rear upper)
1976-1979 Chevrolet Impala (front upper and lower)
1976-1979 Chevrolet Biscayne (front upper and lower)
1976-1979 Chevrolet Bel Air (front upper and lower)
1976-1979 Chevrolet Caprice (front upper and lower)
1976-1979 Chevrolet Impala / full size (front upper and lower)
1980-1981 Chevrolet Impala (front upper and lower, exc with thick 15mm OD bushings)
1980-1981 Chevrolet Caprice (front upper and lower exc with 15mm OD bushings)
Popular Pontiac Applications:
1970-1979 Pontiac Firebird (except with thick 15mm OD bushings)
1980-1981 Pontiac Firebird (except with thick 15mm OD bushings)
Additional Information
Technical Specifications: 4.156 overall length
Technical Specifications: .342 diameter
Buick Applications
1975 - 1981 Buick Electra Limited
1973 - 1973 Buick Electra Base
1975 - 1975 Buick Electra Custom
1980 - 1981 Buick Electra Estate Wagon
1972 - 1979 Buick Electra 225
1978 - 1981 Buick Electra Park Avenue
1972 - 1974 Buick Electra 225 Custom
1974 - 1974 Buick Electra 225 Limited
1969 - 1981 Buick Electra
1969 - 1981 Buick LeSabre
1979 - 1981 Buick LeSabre Limited
1972 - 1981 Buick LeSabre Base
1972 - 1978 Buick LeSabre Custom
1978 - 1981 Buick LeSabre Sport
1974 - 1974 Buick LeSabre Luxus
1977 - 1977 Buick LeSabre Custom Sport
1973 - 1987 Buick Regal
1969 - 1970 Buick Wildcat
Chevrolet Applications
1969 - 1975 Chevrolet Bel Air
1974 - 1974 Chevrolet Bel Air Base
1969 - 1972 Chevrolet Biscayne
1969 - 1972 Chevrolet Brookwood
1970 - 1980 Chevrolet Camaro Base
1981 - 1981 Chevrolet Camaro Sport
1970 - 1975 Chevrolet Camaro RS
1973 - 1978 Chevrolet Camaro LT
1979 - 1981 Chevrolet Camaro Berlinetta
1976 - 1978 Chevrolet Camaro LT Rally Sport
1976 - 1980 Chevrolet Camaro Rally Sport
1970 - 1981 Chevrolet Camaro Z28
1970 - 1972 Chevrolet Camaro SS
1974 - 1974 Chevrolet Caprice Base
1974 - 1981 Chevrolet Caprice Classic
1974 - 1974 Chevrolet Caprice Estate
1975 - 1975 Chevrolet Caprice Estate Wagon
1976 - 1981 Chevrolet Caprice Classic Estate
1976 - 1981 Chevrolet Caprice Classic Landau
1975 - 1980 Chevrolet Caprice Classic Sport
1969 - 1981 Chevrolet Caprice
1969 - 1970 Chevrolet Estate
1969 - 1981 Chevrolet Impala
1976 - 1976 Chevrolet Impala S
1974 - 1981 Chevrolet Impala Base
1975 - 1977 Chevrolet Impala Custom
1975 - 1980 Chevrolet Impala Sport
1977 - 1979 Chevrolet Impala Landau
1976 - 1976 Chevrolet Impala Custom Landau
1969 - 1972 Chevrolet Kingswood
1969 - 1972 Chevrolet Townsman
Oldsmobile Applications
1973 - 1974 Oldsmobile 98 Base
1975 - 1981 Oldsmobile 98 Luxury
1973 - 1981 Oldsmobile 98 Regency
1969 - 1981 Oldsmobile 98
1969 - 1981 Oldsmobile Delta 88
1972 - 1981 Oldsmobile Delta 88 Base
1980 - 1981 Oldsmobile Delta 88 Holiday
1972 - 1981 Oldsmobile Delta 88 Royale
1980 - 1981 Oldsmobile Delta 88 Royale Brougham
Pontiac Applications
1969 - 1981 Pontiac Bonneville
1976 - 1981 Pontiac Bonneville Base
1976 - 1981 Pontiac Bonneville Brougham
1978 - 1981 Pontiac Bonneville Safari
1972 - 1981 Pontiac Catalina Base
1972 - 1972 Pontiac Catalina Brougham
1972 - 1981 Pontiac Catalina Safari
1969 - 1981 Pontiac Catalina
1970 - 1977 Pontiac Firebird
1971 - 1977 Pontiac Firebird Base
1971 - 1977 Pontiac Firebird Esprit
1971 - 1977 Pontiac Firebird Formula
1971 - 1977 Pontiac Firebird Trans Am
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
