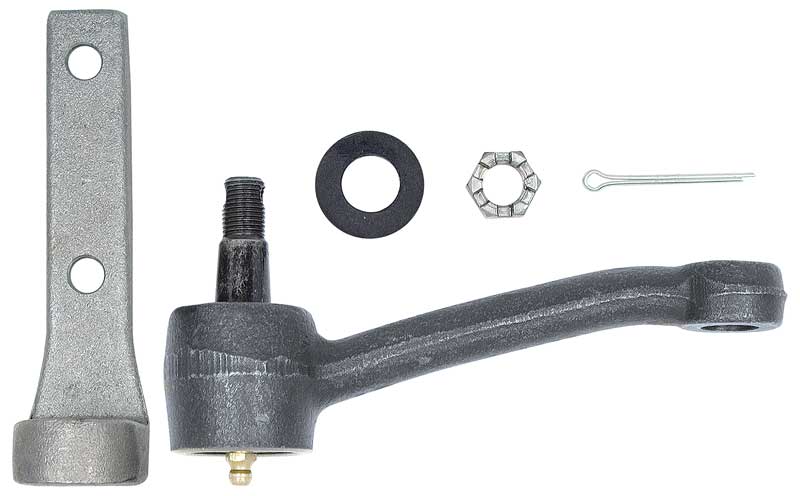

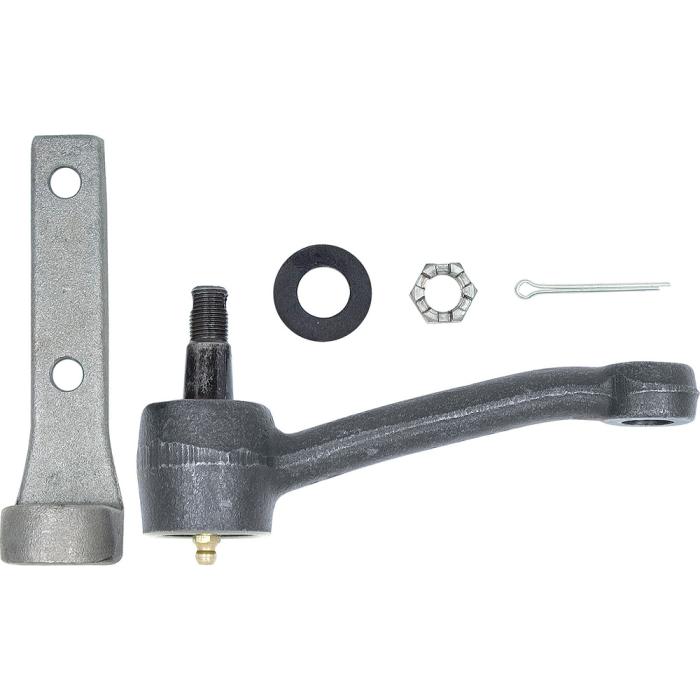

Idler arm assembly for various 1969-74 Pontiac models as listed. This pivoting support for the steering linkage appears on older recirculating ball-type steering systems (pre-rack & pinion) and functions like the pitman arm in a rack and pinion system. This black, cast-iron steering arm features two holes for mounting to the frame, a rubber boot on the mounting section of the idler arm and also includes two fittings and a hex-nut with slots in it to retain a cotter pin.
Product Specifications
Length Center to Center: 5.5
Thread Size: 1/2-20
Hardware Included: Yes
Arm Type: Bent
Arm Fixture: Hole
Bracket Fixture: Stud
Bracket Holes #: 2
Arm Fixture Hole Inside Diameter: 0.556
Greasable: Yes
Pontiac Applications
1969 - 1969 Pontiac Firebird Base
1969 - 1969 Pontiac Firebird Trans Am
1969 - 1969 Pontiac Firebird Sprint
1969 - 1969 Pontiac Firebird 400
1969 - 1969 Pontiac Firebird 350
1969 - 1969 Pontiac Firebird 350 HO
1972 - 1974 Pontiac Ventura
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
